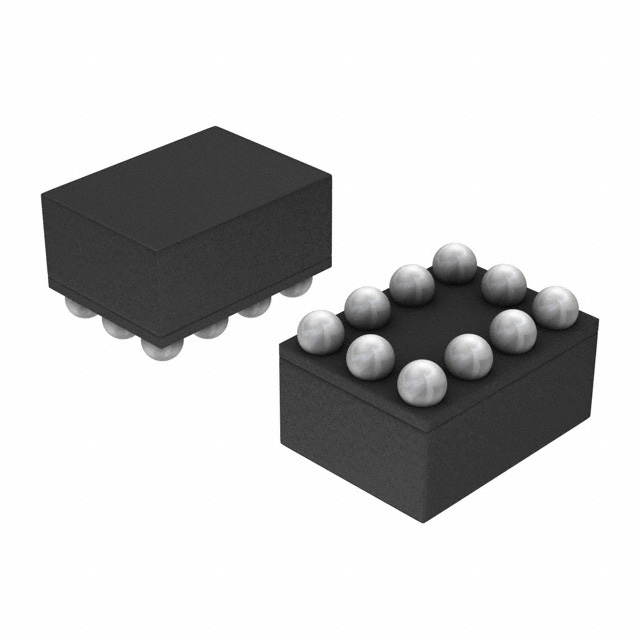

NLAS4717FCT1G
IC SW SPDTX2 3.5OHM 10MICROBUMPManufacturer: onsemi
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The onsemi NLAS4717FCT1G is a dual SPDT analog switch featuring low on-resistance of 3.5 Ohm maximum. This 2:1 multiplexer/demultiplexer is designed for single supply operation from 1.8V to 5.5V. It offers excellent performance with a -3dB bandwidth of 40MHz and low crosstalk of -110dB at 1MHz. The device exhibits channel-to-channel matching (?Ron) of 100mOhm and a charge injection of 9pC. Leakage current is minimized to 1nA maximum. The NLAS4717FCT1G is available in a 10-Microbump package, suitable for surface mount applications and supplied on tape and reel. Typical applications for this component include audio switching and signal routing in consumer electronics and portable devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-UFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 3.5Ohm |
| -3db Bandwidth | 40MHz |
| Supplier Device Package | 10-Microbump |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 9pC |
| Crosstalk | -110dB @ 1MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 100mOhm |
| Switch Time (Ton, Toff) (Max) | 30ns, 40ns |
| Channel Capacitance (CS(off), CD(off)) | 30pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Number of Circuits | 2 |
