NLAS3799BMUR2G

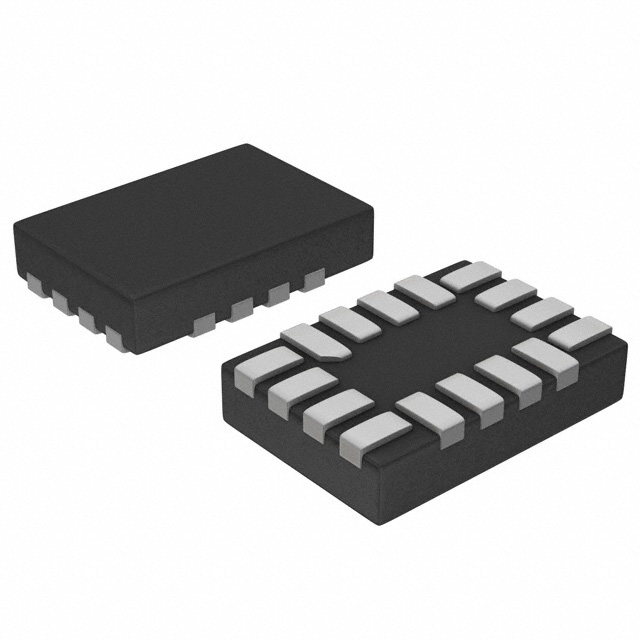

IC SWITCH DPDTX2 400MOHM 16UQFNManufacturer: onsemi
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
onsemi NLAS3799BMUR2G is a high-performance dual pole, double throw (DPDT) analog switch. This 2:2 multiplexer/demultiplexer features a low on-state resistance of 400 mOhm (Max) and excellent channel-to-channel matching with a delta Ron of 50 mOhm (Max). With a -3dB bandwidth of 19 MHz and low charge injection of 51 pC, it is suitable for applications requiring signal integrity. The NLAS3799BMUR2G operates from a single supply voltage of 1.65V to 4.5V and offers a typical crosstalk of -90 dB at 100 kHz. It is housed in a compact 16-UQFN package, measuring 1.8x2.6 mm, and is supplied on tape and reel for efficient surface mounting. This component finds application in various electronic systems, including consumer electronics and industrial control.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-UFQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 400mOhm |
| -3db Bandwidth | 19MHz |
| Supplier Device Package | 16-UQFN (1.8x2.6) |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 51pC |
| Crosstalk | -90dB @ 100kHz |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 50mOhm (Max) |
| Switch Time (Ton, Toff) (Max) | 50ns, 30ns |
| Channel Capacitance (CS(off), CD(off)) | 3pF |
| Current - Leakage (IS(off)) (Max) | 500nA |
| Number of Circuits | 2 |
