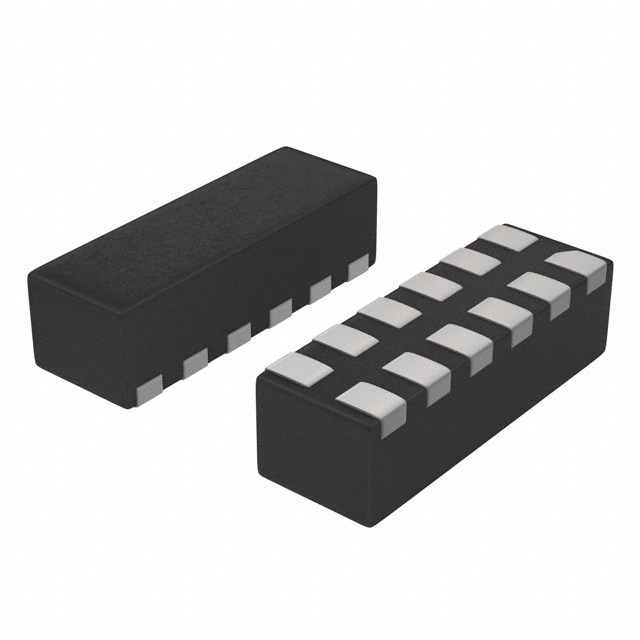

NLAS3158MNR2G
IC SWITCH SPDT X 2 13OHM 12DFNManufacturer: onsemi
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The onsemi NLAS3158MNR2G is a dual SPDT (Single Pole Double Throw) analog switch featuring a 2:1 multiplexer/demultiplexer circuit configuration. This component offers a low on-resistance of 13 Ohms (max) and a -3dB bandwidth of 250MHz, suitable for signal routing in various applications. Channel-to-channel resistance matching (?Ron) is specified at 150 mOhms, with low charge injection at 7 pC and crosstalk of -54 dB at 10 MHz. The device supports single supply voltages from 1.65V to 5.5V and operates across an industrial temperature range of -55°C to 125°C. Packaged in a 12-DFN (3x1) with exposed pad, the NLAS3158MNR2G is delivered on tape and reel. Its specifications make it relevant for use in consumer electronics and industrial automation systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C (TA) |
| On-State Resistance (Max) | 13Ohm |
| -3db Bandwidth | 250MHz |
| Supplier Device Package | 12-DFN (3x1) |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 7pC |
| Crosstalk | -54dB @ 10MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 150mOhm |
| Switch Time (Ton, Toff) (Max) | 5.2ns, 3.5ns |
| Channel Capacitance (CS(off), CD(off)) | 2.3pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Number of Circuits | 2 |
