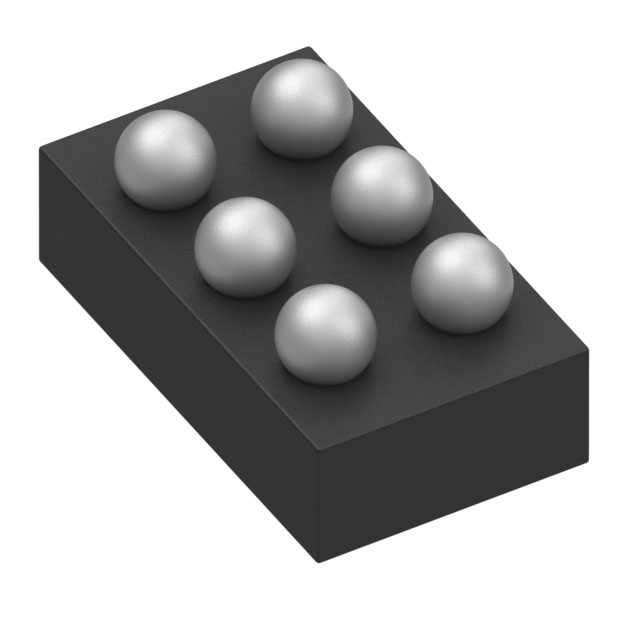

NCT275BFCT2G
SENSOR DIGITAL -55C-125C 6WLCSPManufacturer: onsemi
Categories: Analog and Digital Output
Quality Control: Learn More
The onsemi NCT275BFCT2G is a digital local temperature sensor with a sensing range of -55°C to 125°C. This component features an 11-bit resolution and operates via an I2C/SMBus output interface. The device offers accuracy of ±1°C within the 0°C to 70°C range and ±3°C across its full operating range of -55°C to 125°C. Key features include one-shot functionality, an output switch, programmable limit settings, and a shutdown mode, all designed for efficient thermal management. Supplied in a compact 6-WLCSP (0.87x1.37) package, it is suitable for surface-mount applications. The NCT275BFCT2G is delivered on a tape and reel and is an ideal solution for thermal monitoring in consumer electronics, industrial automation, and automotive systems. It operates with a supply voltage of 3V to 5.5V.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | One-Shot, Output Switch, Programmable Limit, Shutdown Mode |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFBGA, WLCSP |
| Output Type | I2C/SMBus |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 3V ~ 5.5V |
| Sensor Type | Digital, Local |
| Resolution | 11 b |
| Supplier Device Package | 6-WLCSP (0.87x1.37) |
| Test Condition | 0°C ~ 70°C (-55°C ~ 125°C) |
| Accuracy - Highest (Lowest) | ±1°C (±3°C) |
| Sensing Temperature - Local | -55°C ~ 125°C |
| Sensing Temperature - Remote | - |
