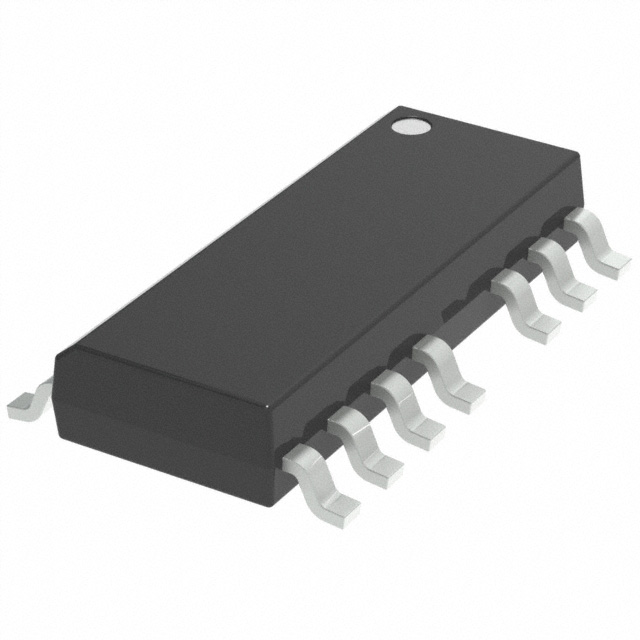

NCV1397BDR2G
IC OFFLINE SW HALF-BRDG 16SOICManufacturer: onsemi
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Half-Bridge Topology 60kHz ~ 500kHz 16-SOIC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width), 15 Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Duty Cycle | 50% |
| Frequency - Switching | 60kHz ~ 500kHz |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Output Isolation | Isolated |
| Topology | Half-Bridge |
| Voltage - Supply (Vcc/Vdd) | 9.5V ~ 20V |
| Supplier Device Package | 16-SOIC |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Voltage - Start Up | 10.5 V |
| Control Features | Frequency Control |
| Grade | Automotive |
| Qualification | AEC-Q100 |
