NCP81178MNTXG
SECONDARY SYNCHRONOUS RECTIFIERManufacturer: onsemi
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback, Forward, Half-Bridge Topology 100kHz ~ 1.2MHz 10-DFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

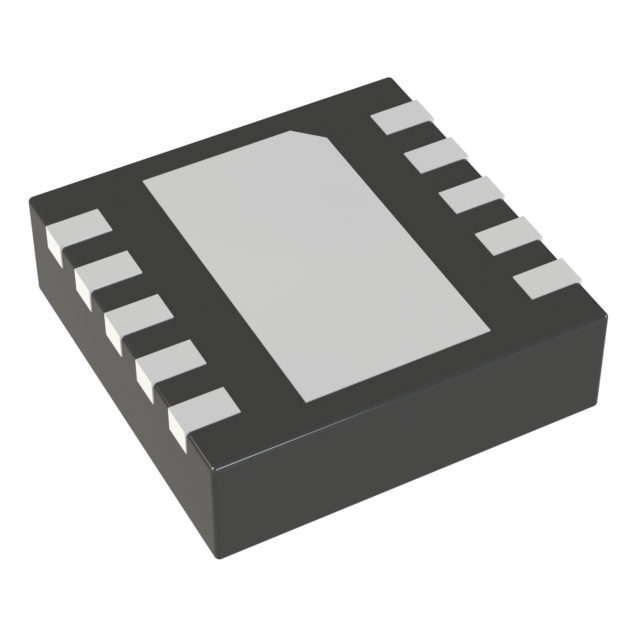

| Package / Case | 10-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Duty Cycle | - |
| Frequency - Switching | 100kHz ~ 1.2MHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | - |
| Output Isolation | Isolated |
| Topology | Flyback, Forward, Half-Bridge |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 14V |
| Supplier Device Package | 10-DFN (3x3) |
| Fault Protection | - |
| Control Features | Frequency Control, Soft Start |
| Grade | Automotive |
| Qualification | AEC-Q100 |
Request a Quote
