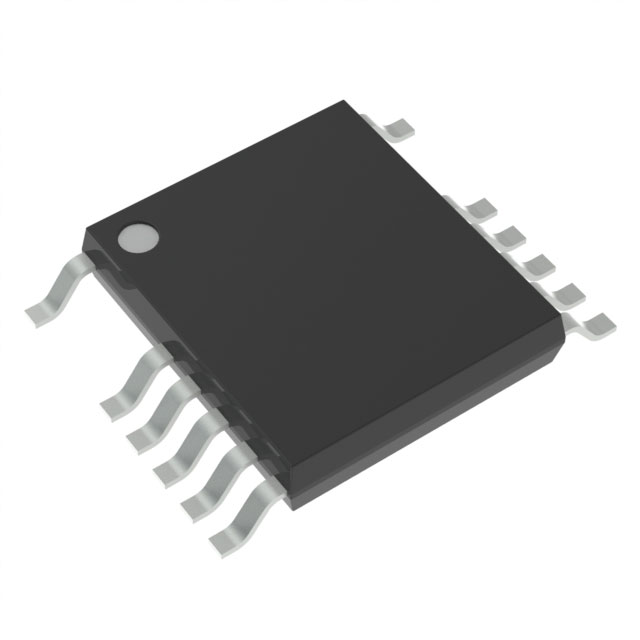

NCP1568G04DBR2G
IC OFFLINE SW FLYBACK 16TSSOPManufacturer: onsemi
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
The onsemi NCP1568G04DBR2G is an offline switching converter designed for flyback topologies. This device operates within a switching frequency range of 100kHz to 1MHz and features integrated switching elements. It offers robust control features including frequency control and soft start functionality. The NCP1568G04DBR2G provides comprehensive fault protection mechanisms, encompassing current limiting, over power, over temperature, over voltage, and short circuit protection. Its startup voltage is rated at 15.2V, with an operating supply voltage range of 10V to 27V. The component is packaged in a 16-TSSOP (0.173", 4.40mm Width) with 12 leads, suitable for surface mounting and supplied on a tape and reel. This component is utilized in applications requiring isolated power conversion, such as consumer electronics and industrial power supplies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 9 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width), 12 Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Duty Cycle | 79% |
| Frequency - Switching | 100kHz ~ 1MHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | - |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 27V |
| Supplier Device Package | 16-TSSOP |
| Fault Protection | Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit |
| Voltage - Start Up | 15.2 V |
| Control Features | Frequency Control, Soft Start |
