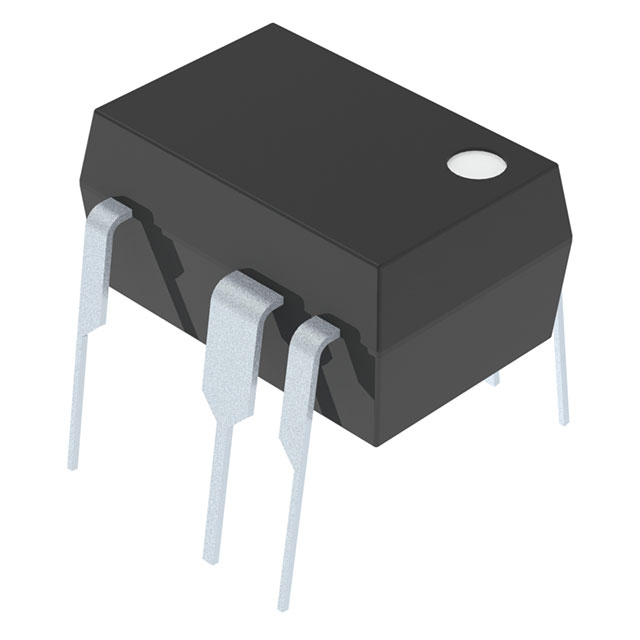

NCP1060AP100G
IC OFFLINE SWITCH MULT TOP 7DIPManufacturer: onsemi
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
onsemi NCP1060AP100G is a high-performance offline switching controller designed for AC/DC conversion applications. This component integrates a 700V power MOSFET, enabling efficient buck and flyback topologies with a switching frequency of 60kHz. The device features internal startup circuitry, requiring only 9V for initialization, and operates over a wide supply voltage range of 7V to 20V. Built-in fault protection mechanisms include overload, overpower, over-temperature, and short-circuit protection, ensuring robust operation. With a maximum output power of 8.3W and a 66% duty cycle, it is suitable for power supplies in consumer electronics, industrial automation, and lighting applications. The 7-PDIP package facilitates through-hole mounting.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-DIP (0.300"", 7.62mm), 7 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Duty Cycle | 66% |
| Frequency - Switching | 60kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Output Isolation | Either |
| Topology | Buck, Flyback |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 20V |
| Supplier Device Package | 7-PDIP |
| Fault Protection | Over Load, Over Power, Over Temperature, Short Circuit |
| Voltage - Start Up | 9 V |
| Control Features | - |
| Power (Watts) | 8.3 W |
