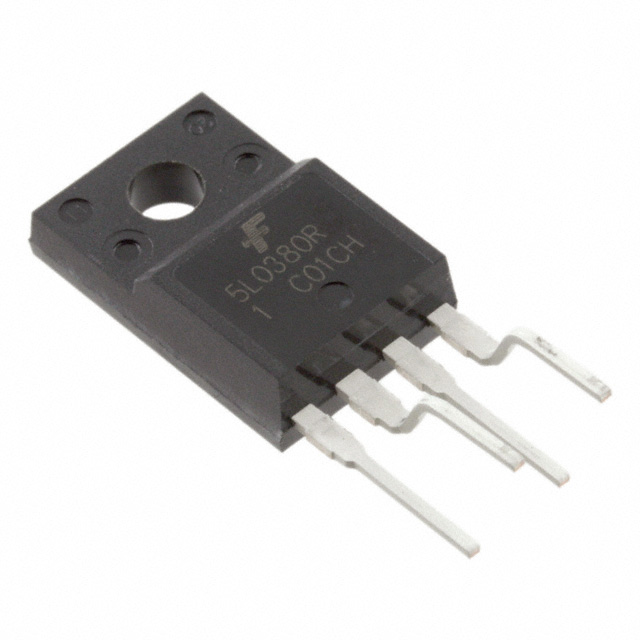

KA5L0380RYDTU
IC OFFLINE SW MULT TOP TO220FManufacturer: onsemi
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
The onsemi KA5L0380RYDTU is a Flyback, Forward topology offline switching converter. This FPS™ series component features an internal switch with a breakdown voltage of 800V and a switching frequency of 50kHz. Operating within a supply voltage range of 9V to 30V, it has a start-up voltage of 15V and a maximum duty cycle of 77%. Integrated fault protection includes current limiting, over-temperature, and over-voltage capabilities. The KA5L0380RYDTU is housed in a TO-220F-4L (Forming) package suitable for through-hole mounting. This component is commonly utilized in power supply applications across consumer electronics and industrial control systems.
Additional Information
Series: FPS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-4 Full Pack, Formed Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Duty Cycle | 77% |
| Frequency - Switching | 50kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Output Isolation | - |
| Topology | Flyback, Forward |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 30V |
| Supplier Device Package | TO-220F-4L (Forming) |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Voltage - Start Up | 15 V |
| Control Features | - |
