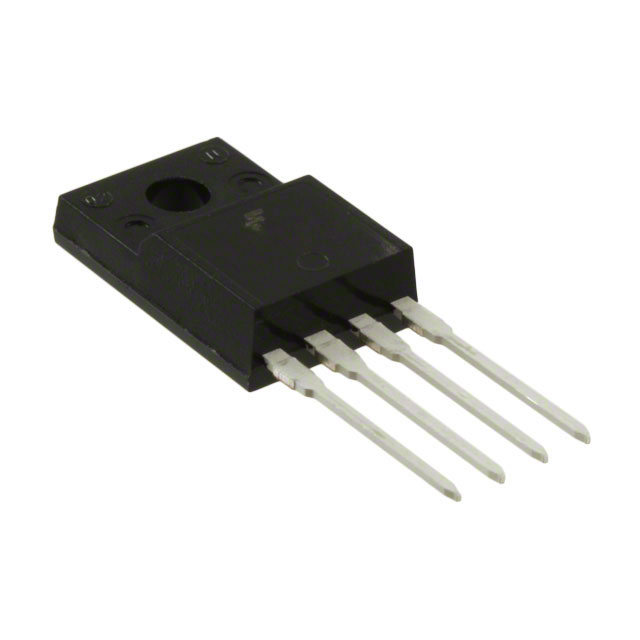

KA5H0380RTU
IC OFFLINE SW MULT TOP TO220FManufacturer: onsemi
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
The onsemi KA5H0380RTU is a highly integrated offline PWM controller from the FPS™ series. This device is designed for flyback and forward converter topologies, operating at a switching frequency of 100kHz. Featuring an internal 800V breakdown voltage power MOSFET, it simplifies power supply design by reducing component count. Key fault protection features include current limiting, over-temperature, and over-voltage protection, ensuring robust operation. The KA5H0380RTU is housed in a TO-220F-4L package for through-hole mounting. It operates within a supply voltage range of 9V to 30V, with a startup voltage of 15V, and a maximum duty cycle of 67%. This component is widely employed in consumer electronics, power adapters, and industrial control systems requiring efficient offline power conversion.
Additional Information
Series: FPS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-4 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Duty Cycle | 67% |
| Frequency - Switching | 100kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Output Isolation | - |
| Topology | Flyback, Forward |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 30V |
| Supplier Device Package | TO-220F-4L |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Voltage - Start Up | 15 V |
| Control Features | - |
