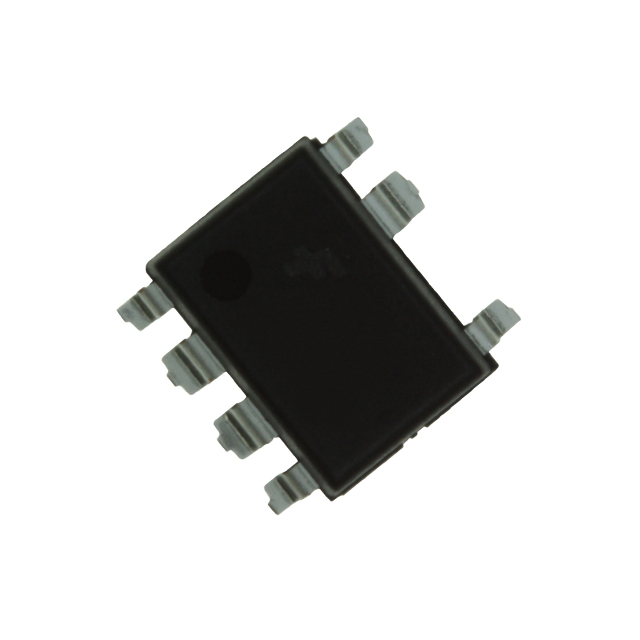

FSQ510MX
IC OFFLINE SWITCH FLYBACK 7LSOPManufacturer: onsemi
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
The onsemi FSQ510MX is an offline flyback converter from the FPS™ series, designed for efficient power conversion. This device integrates a high-voltage MOSFET, enabling a simplified and cost-effective solution for power supplies. Operating within a switching frequency range of 94.3kHz to 132kHz, it supports a maximum output power of 9W. Key features include internal synchronization control, a 60% duty cycle, and comprehensive fault protection mechanisms such as current limiting, overload, and over-temperature protection. The FSQ510MX utilizes a 7-LSOP package, suitable for surface mounting applications. Its 700V breakdown voltage and 8.7V startup voltage are critical parameters for robust operation. This component finds application in various industries, including consumer electronics and industrial power systems requiring isolated flyback topologies.
Additional Information
Series: FPS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Duty Cycle | 60% |
| Frequency - Switching | 94.3kHz ~ 132kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 6.7V ~ 20V |
| Supplier Device Package | 7-LSOP |
| Fault Protection | Current Limiting, Over Load, Over Temperature |
| Voltage - Start Up | 8.7 V |
| Control Features | Sync |
| Power (Watts) | 9 W |
