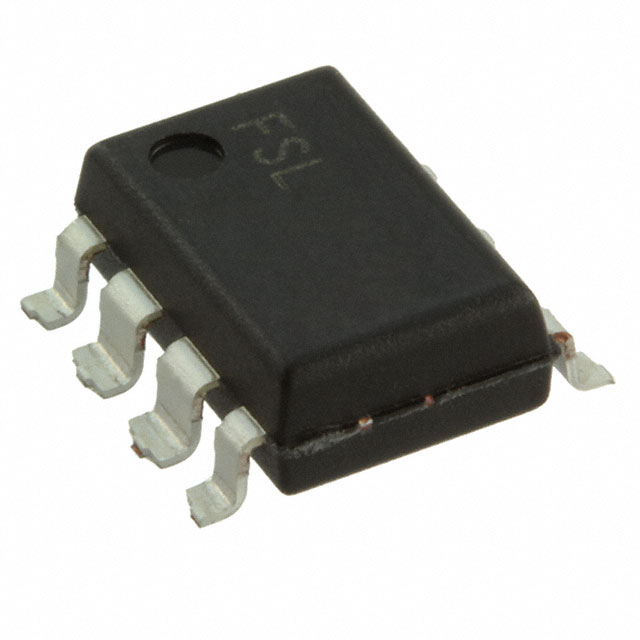

FSQ510M
IC OFFLINE SWITCH FLYBACK 7LSOPManufacturer: onsemi
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
The onsemi FSQ510M is a high-performance FPS™ series offline flyback controller designed for efficient power conversion. This device integrates a 700V breakdown voltage switch, operating within a switching frequency range of 94.3kHz to 132kHz. It features a 60% duty cycle and 8.7V startup voltage. The FSQ510M offers comprehensive fault protection, including current limiting, overload, and over-temperature protection. Housed in a 7-LSOP package with gull wing leads, it is suitable for surface mount applications. This component is ideal for power supplies in consumer electronics, industrial automation, and lighting applications requiring isolated, efficient AC-DC conversion. The operating temperature range is -40°C to 140°C (TJ).
Additional Information
Series: FPS™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Duty Cycle | 60% |
| Frequency - Switching | 94.3kHz ~ 132kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 6.7V ~ 20V |
| Supplier Device Package | 7-LSOP |
| Fault Protection | Current Limiting, Over Load, Over Temperature |
| Voltage - Start Up | 8.7 V |
| Control Features | Sync |
| Power (Watts) | 9 W |
