FSL136MRTWDTU

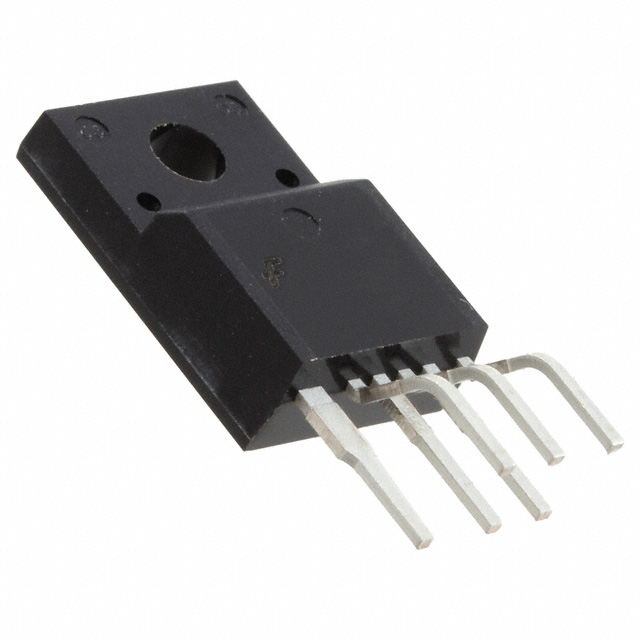

IC OFFLINE SW FLBACK TO220F-6LManufacturer: onsemi
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
The onsemi FSL136MRTWDTU is a highly integrated offline PWM controller from the FPS™ series, designed for flyback converter topologies. Operating at a 67kHz switching frequency, this component features an internal 650V power switch, simplifying circuit design and reducing component count. It offers robust fault protection, including current limiting, overload, over-temperature, and over-voltage protection, ensuring system reliability. The device operates from a wide supply voltage range of 7.5V to 26V, with a typical startup voltage of 12V. Its TO-220F-6L (Forming) package with through-hole mounting is suitable for applications requiring isolated power conversion, such as in consumer electronics, industrial power supplies, and LED lighting. The maximum power handling capability is 50W.
Additional Information
Series: FPS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-6 Full Pack, Formed Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Duty Cycle | 67% |
| Frequency - Switching | 67kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 26V |
| Supplier Device Package | TO-220F-6L (Forming) |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Voltage - Start Up | 12 V |
| Control Features | - |
| Power (Watts) | 50 W |
