FS7M0680YDTU

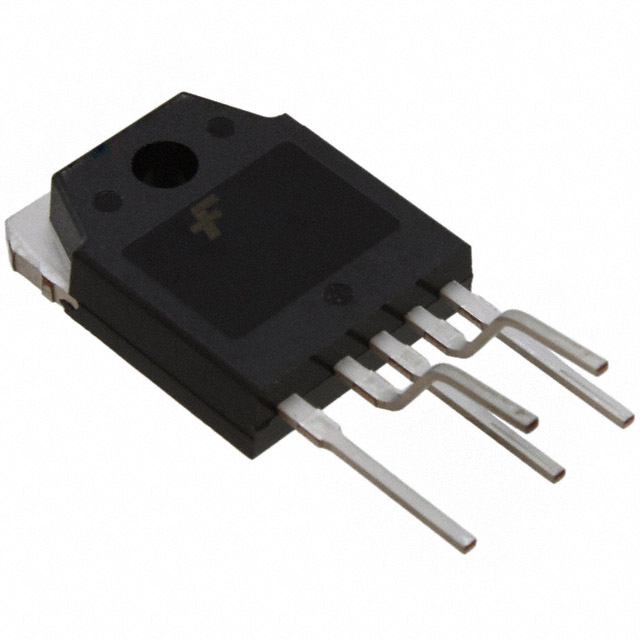

IC OFFLINE SW MULT TOP TO3P-5LManufacturer: onsemi
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
The onsemi FPS™ FS7M0680YDTU is an 800V offline switcher IC designed for Flyback and Forward topologies. This TO-3P-5L package component operates at a switching frequency of 66kHz and features integrated high-voltage MOSFETs. It supports a wide supply voltage range of 9V to 30V with a 15V startup voltage. Control features include soft start, and robust fault protection mechanisms such as current limiting, overload, over-temperature, and over-voltage protection are incorporated. With a 50% duty cycle capability and isolated output, this device is suitable for AC-DC converter applications across various industries including industrial, consumer electronics, and power supplies. The component is provided in a TO-3P-5L (Forming) package.
Additional Information
Series: FPS™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-3P-5 Formed Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Duty Cycle | 50% |
| Frequency - Switching | 66kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Output Isolation | Isolated |
| Topology | Flyback, Forward |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 30V |
| Supplier Device Package | TO-3P-5L (Forming) |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Voltage - Start Up | 15 V |
| Control Features | Soft Start |
