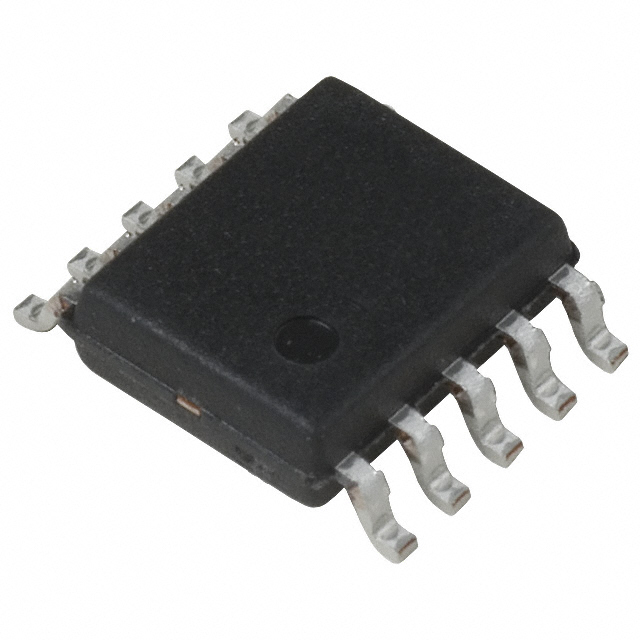

FAN7601BGX
IC OFFLINE SWITCH FLYBACK 10SSOPManufacturer: onsemi
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
The onsemi FAN7601BGX is an offline flyback converter IC operating up to 300kHz. This component features internal switching capabilities and a high duty cycle of 95%. Integrated control features include frequency control and soft start for optimized power conversion. The device offers robust fault protection mechanisms, including over temperature and over voltage protection. Designed for surface mount applications, it is supplied in a 10-SSOP (10-SOP) package, delivered on tape and reel. The FAN7601BGX operates within a supply voltage range of 8V to 20V with a typical startup voltage of 12V. Its operating junction temperature range is -40°C to 150°C. This IC is suitable for applications in power supplies and lighting systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Duty Cycle | 95% |
| Frequency - Switching | Up to 300kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | - |
| Output Isolation | - |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 20V |
| Supplier Device Package | 10-SSOP |
| Fault Protection | Over Temperature, Over Voltage |
| Voltage - Start Up | 12 V |
| Control Features | Frequency Control, Soft Start |
