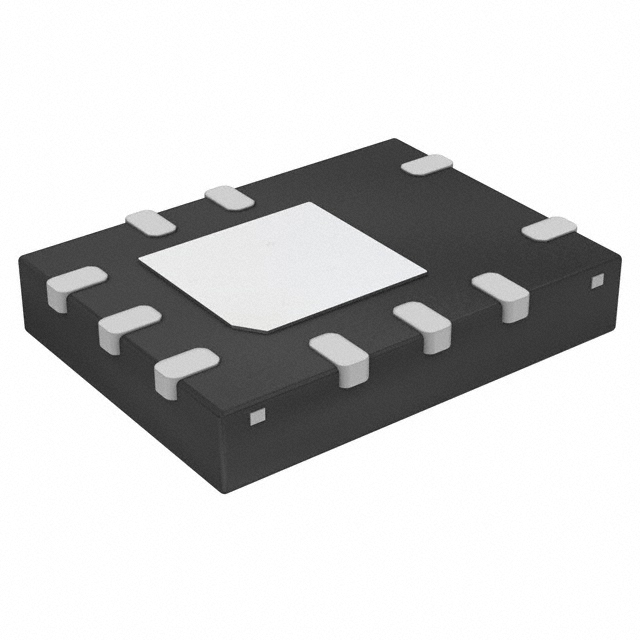

FAN501MPX
IC OFFLINE SWITCH FLYBACK 10MLPManufacturer: onsemi
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback Topology 85kHz ~ 140kHz 10-MLP (4x3)
Additional Information
Series: WSaver®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Duty Cycle | 68.5% |
| Frequency - Switching | 85kHz ~ 140kHz |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 5.8V ~ 30V |
| Supplier Device Package | 10-MLP (4x3) |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Voltage - Start Up | 17.5 V |
| Control Features | - |
