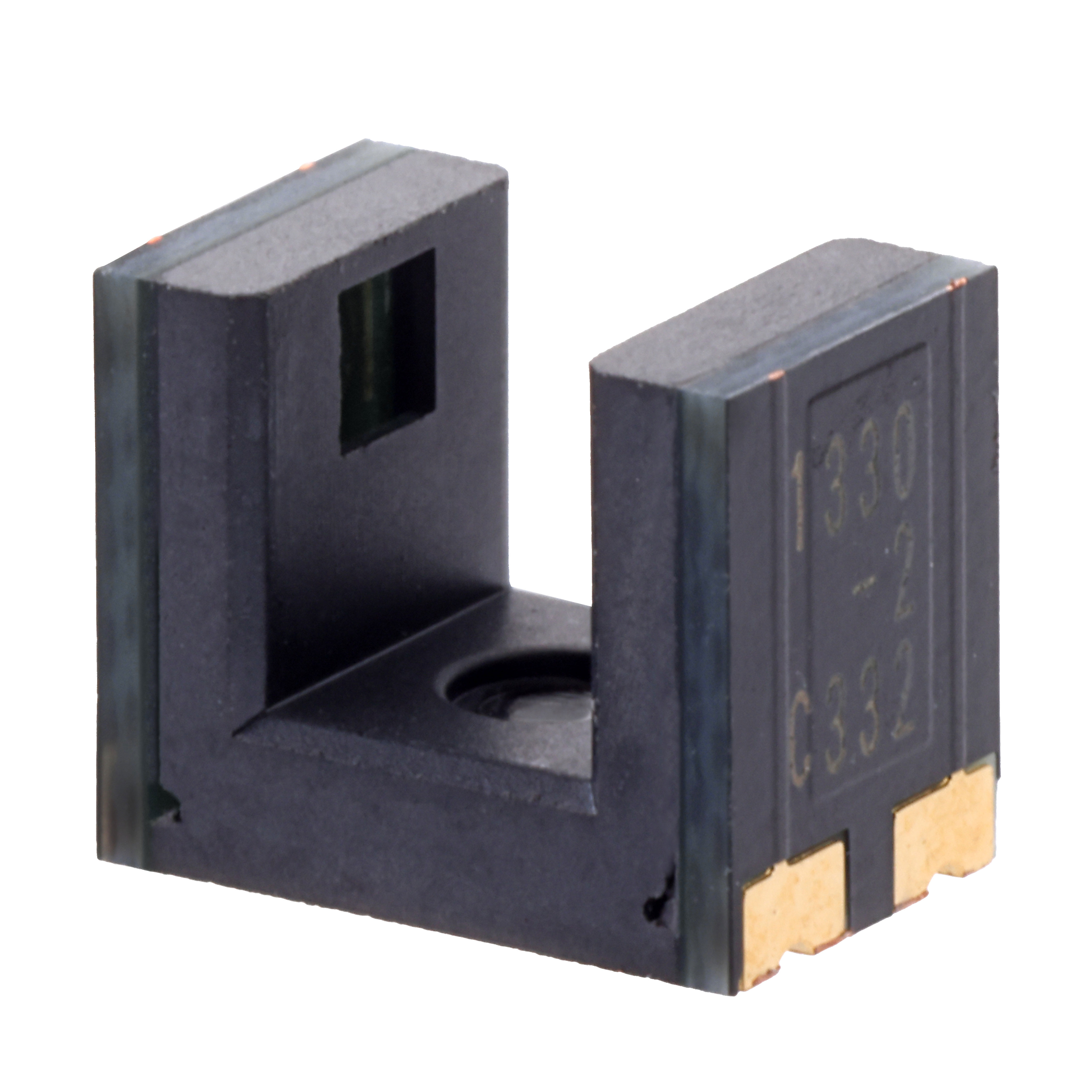

EE-SX1330-2
ULTRA-COMPACT, SLOTTED, SMD SENSManufacturer: Omron Electronics Inc-EMC Div
Categories: Transistor Output
Quality Control: Learn More
Omron Electronics Inc-EMC Div EE-SX1330-2 is an ultra-compact, transmissive optical sensor with a phototransistor output. This SMD module features a sensing distance of 0.118 inches (3mm) and a slot-type design. It operates with a maximum collector current (Ic) of 20 mA and a maximum DC forward current (If) of 25 mA. The collector emitter breakdown voltage (Vce) is 12 V. This component is suitable for surface mount applications and is supplied in Tape & Reel (TR) packaging. Typical response times are 19µs and 26µs. This sensor finds application in industrial automation, consumer electronics, and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Module, No Lead, Slot Type |
| Sensing Distance | 0.118"" (3mm) |
| Sensing Method | Transmissive |
| Mounting Type | Surface Mount |
| Operating Temperature | -30°C ~ 85°C |
| Output Configuration | Phototransistor |
| Response Time | 19µs, 26µs |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 12 V |
| Current - DC Forward (If) (Max) | 25 mA |
