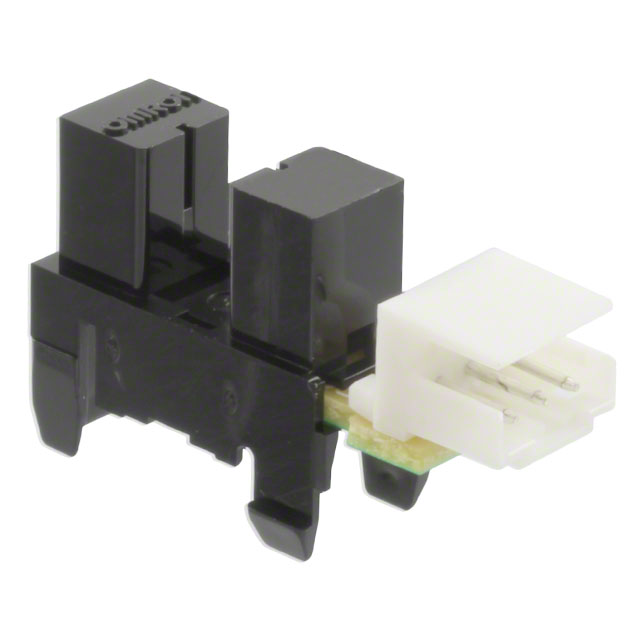

EE-SX1235A-P2
SENSOR OPT SLOT PHOTOTRAN CON MTManufacturer: Omron Electronics Inc-EMC Div
Categories: Transistor Output
Quality Control: Learn More
Optical Sensor Through-Beam 0.197"" (5mm) Phototransistor Module, Connector
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Connector |
| Sensing Distance | 0.197"" (5mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Snap-In |
| Operating Temperature | -25°C ~ 95°C |
| Output Configuration | Phototransistor |
| Response Time | 8µs, 8µs |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
