B3U-1000P
SWITCH TACTILE SPST-NO 0.05A 12VManufacturer: Omron Electronics Inc-EMC Div
Categories: Tactile Switches
Quality Control: Learn More
Tactile Switch SPST-NO Top Actuated Surface Mount
Additional Information
Series: B3URoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -25°C ~ 70°C |
| Termination Style | SMD (SMT) Tab |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Illumination | Non-Illuminated |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Standard |
| Operating Force | 153gf |
| Outline | 3.00mm x 2.50mm |
| Ingress Protection | Dust Proof |
| Actuator Height off PCB, Vertical | 1.60mm |
| Actuator Orientation | Top Actuated |
| Actuator Length, Right Angle | - |
Request a Quote
Clients Also Buy

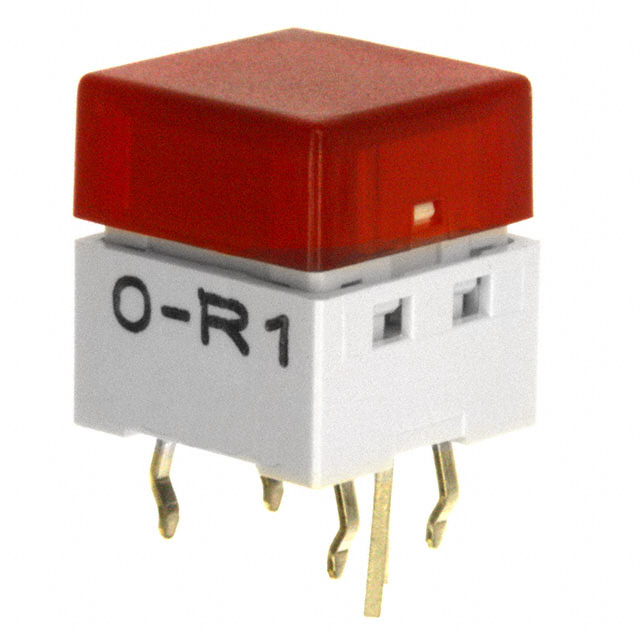

B3W-9000-R1R
SWITCH TACTILE SPST-NO 0.05A 24V

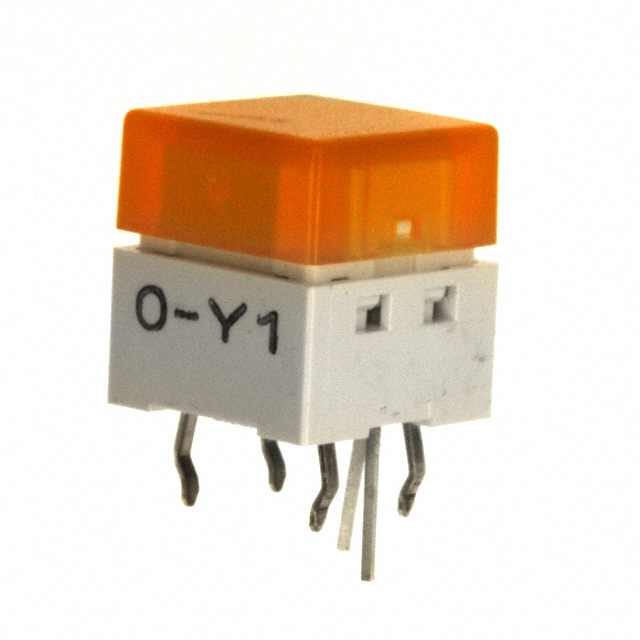

B3W-9000-Y1Y
