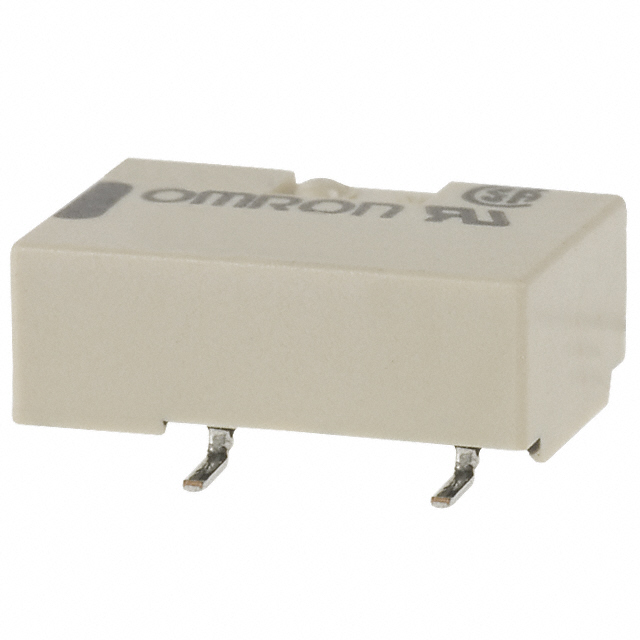

G6L-1F-TR DC12
RELAY TELECOM SPST 1A 12VManufacturer: Omron Electronics Inc-EMC Div
Categories: Signal Relays, Up to 2 Amps
Quality Control: Learn More
Telecom Relay SPST-NO (1 Form A) Surface Mount
Additional Information
Series: G6LRoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 70°C |
| Termination Style | Gull Wing |
| Approval Agency | CSA, UL |
| Relay Type | Telecom |
| Coil Current | 15 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Fully |
| Contact Material | - |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 125VAC, 60VDC - Max |
| Must Release Voltage | 1.2 VDC |
| Must Operate Voltage | 9 VDC |
| Operate Time | 5 ms |
| Release Time | 5 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 125VA, 60W |
