G6K-2P DC9
RELAY TELECOM DPDT 1A 9VManufacturer: Omron Electronics Inc-EMC Div
Categories: Signal Relays, Up to 2 Amps
Quality Control: Learn More

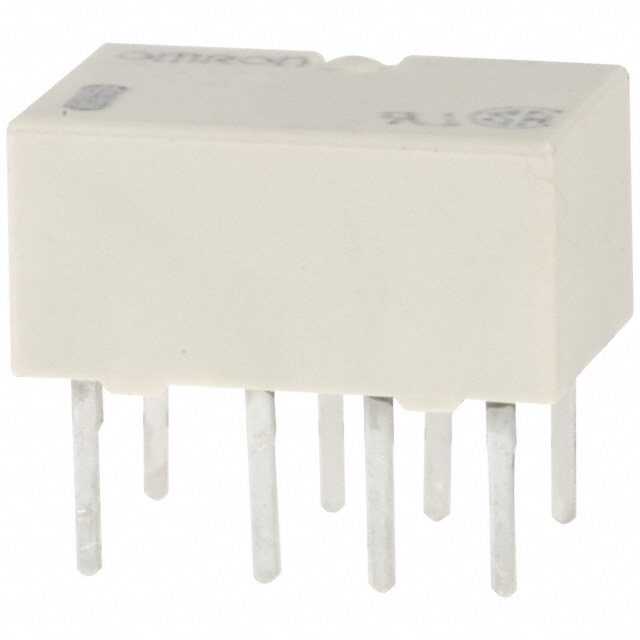

Telecom Relay DPDT (2 Form C) Through Hole
Additional Information
Series: G6KRoHS Status: Request inventory verificationManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Mounting Type | Through Hole |
| Coil Voltage | 9VDC |
| Operating Temperature | -40°C ~ 70°C |
| Termination Style | PC Pin |
| Approval Agency | - |
| Relay Type | Telecom |
| Coil Current | 11.3 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Fully |
| Contact Material | Silver (Ag), Gold (Au) |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 125VAC, 60VDC - Max |
| Must Release Voltage | 0.9 VDC |
| Must Operate Voltage | 7.2 VDC |
| Operate Time | 3 ms |
| Release Time | 3 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 125VA, 60W |
