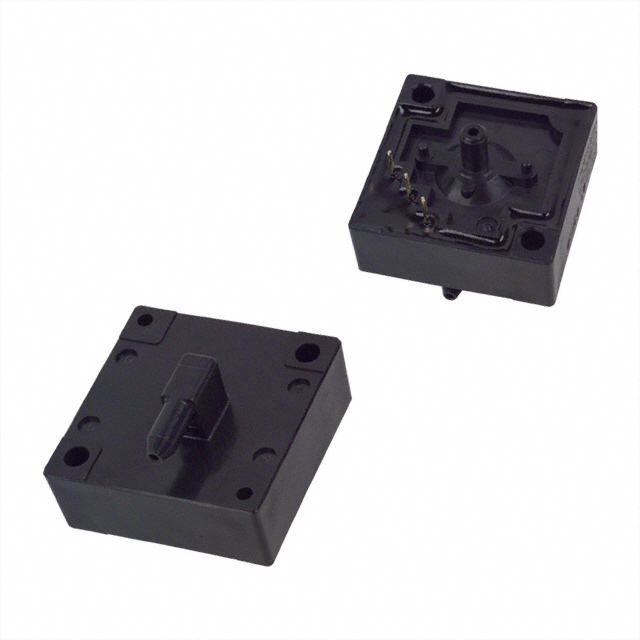

D8M-A1
SENSOR 0.71PSIG 0.16"" 1.247VManufacturer: Omron Electronics Inc-EMC Div
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 0.71PSI (4.9kPa) Vented Gauge Male - 0.16"" (4.06mm) Tube 15 mV ~ 1247 mV (2.2V) 3-SIP Module
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 3-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 15 mV ~ 1247 mV (2.2V) |
| Operating Pressure | 0.71PSI (4.9kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±2% |
| Operating Temperature | -30°C ~ 70°C |
| Termination Style | Cable |
| Voltage - Supply | 0V ~ 2.2V |
| Port Size | Male - 0.16"" (4.06mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 8.53PSI (58.8kPa) |
Request a Quote
