G9TA5018M
AC Latching Relay - 60AManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Socketable
Additional Information
Series: G9TARoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Socketable |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Plug In |
| Approval Agency | UR |
| Relay Type | General Purpose |
| Coil Current | 217 mA |
| Coil Type | Latching, Dual Coil |
| Seal Rating | Sealed - Flux Protection |
| Contact Material | Silver Alloy |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 60 A |
| Switching Voltage | 250VAC - Max |
| Must Release Voltage | - |
| Must Operate Voltage | 9.6 VDC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 15000VA |
Request a Quote
Clients Also Buy

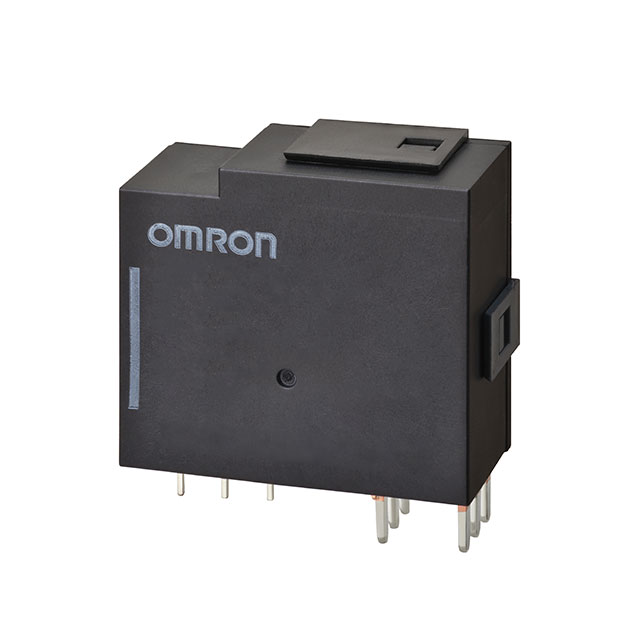

G9TA-K1AP DC12
RELAY GEN PURPOSE SPST 60A 12V

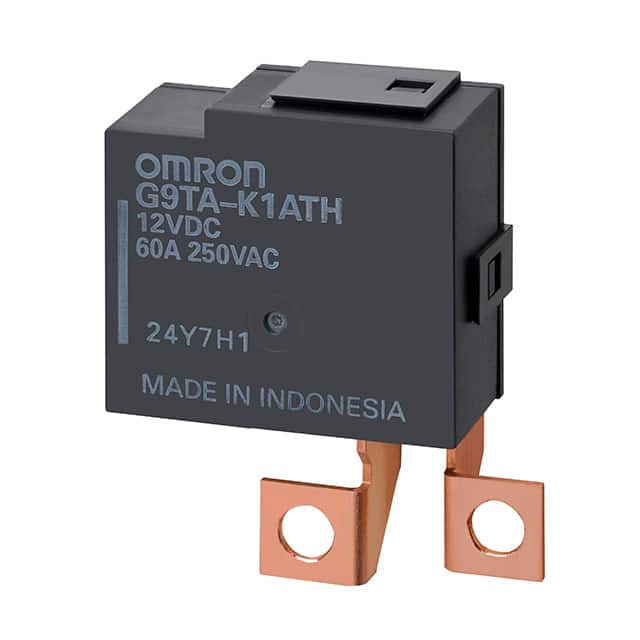

G9TA-K1ATH DC12
RELAY GEN PURPOSE SPST 60A 12V

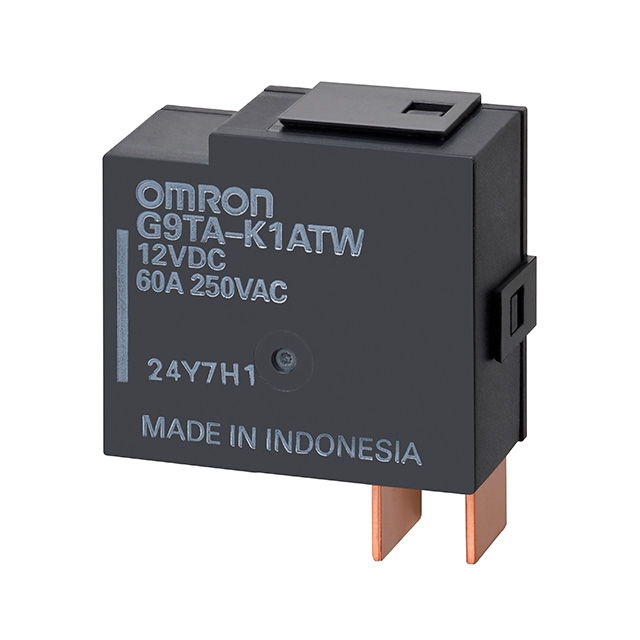

G9TA-K1ATW DC12
