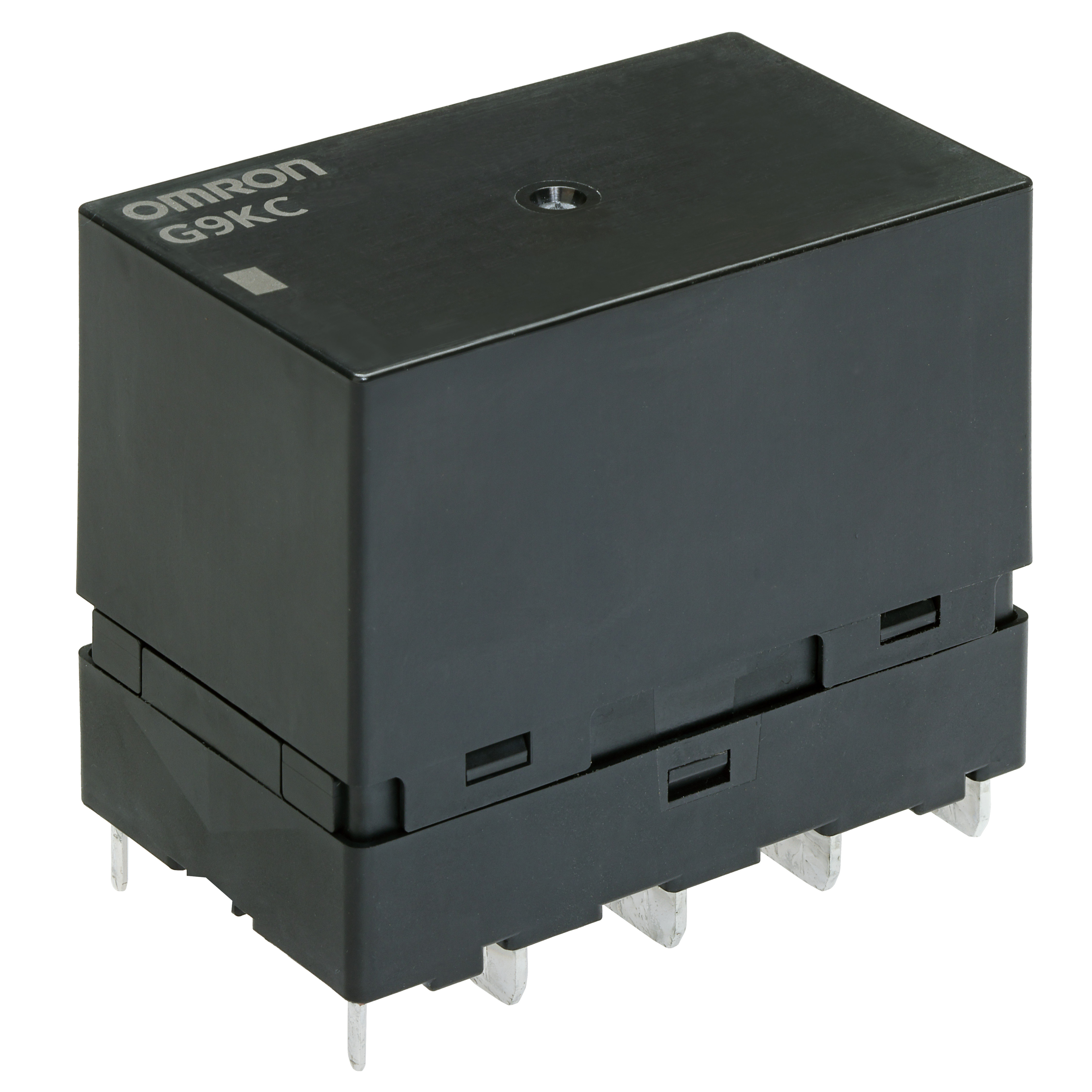

G9KC-4A DC12
RELAY GEN PURPOSE 4PST 40A 12VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay 4PST-NO (4 Form A) 12VDC Coil Through Hole
Additional Information
Series: G9KCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Approval Agency | CQC, cULus, TUV |
| Relay Type | General Purpose |
| Coil Current | 417 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Flux Protection |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | 4PST-NO (4 Form A) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 480VAC - Max |
| Must Release Voltage | 0.6 VDC |
| Must Operate Voltage | 9 VDC |
| Operate Time | 50 ms |
| Release Time | 30 ms |
| Grade | - |
| Coil Insulation | Class F |
| Qualification | - |
| Load - Max Switching | 19200VA |
