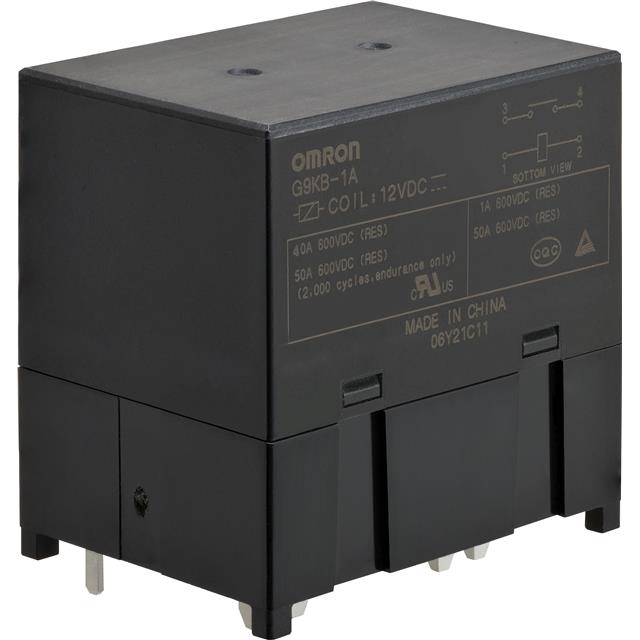

G9KB-1A DC12
RELAY GEN PURPOSE SPST 50A 12VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Additional Information
Series: G9KBRoHS Status: Request inventory verificationManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Approval Agency | CQC, cULus, TUV |
| Relay Type | General Purpose |
| Coil Current | 235.3 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Flux Protection |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 50 A |
| Switching Voltage | 600VDC - Max |
| Must Release Voltage | 1.2 VDC |
| Must Operate Voltage | 9 VDC |
| Operate Time | 30 ms |
| Release Time | 10 ms |
| Grade | - |
| Coil Insulation | Class F |
| Qualification | - |
| Load - Max Switching | 30000W |
Request a Quote
Clients Also Buy
G9KB-1A DC24
RELAY GEN PURPOSE SPST 50A 24V

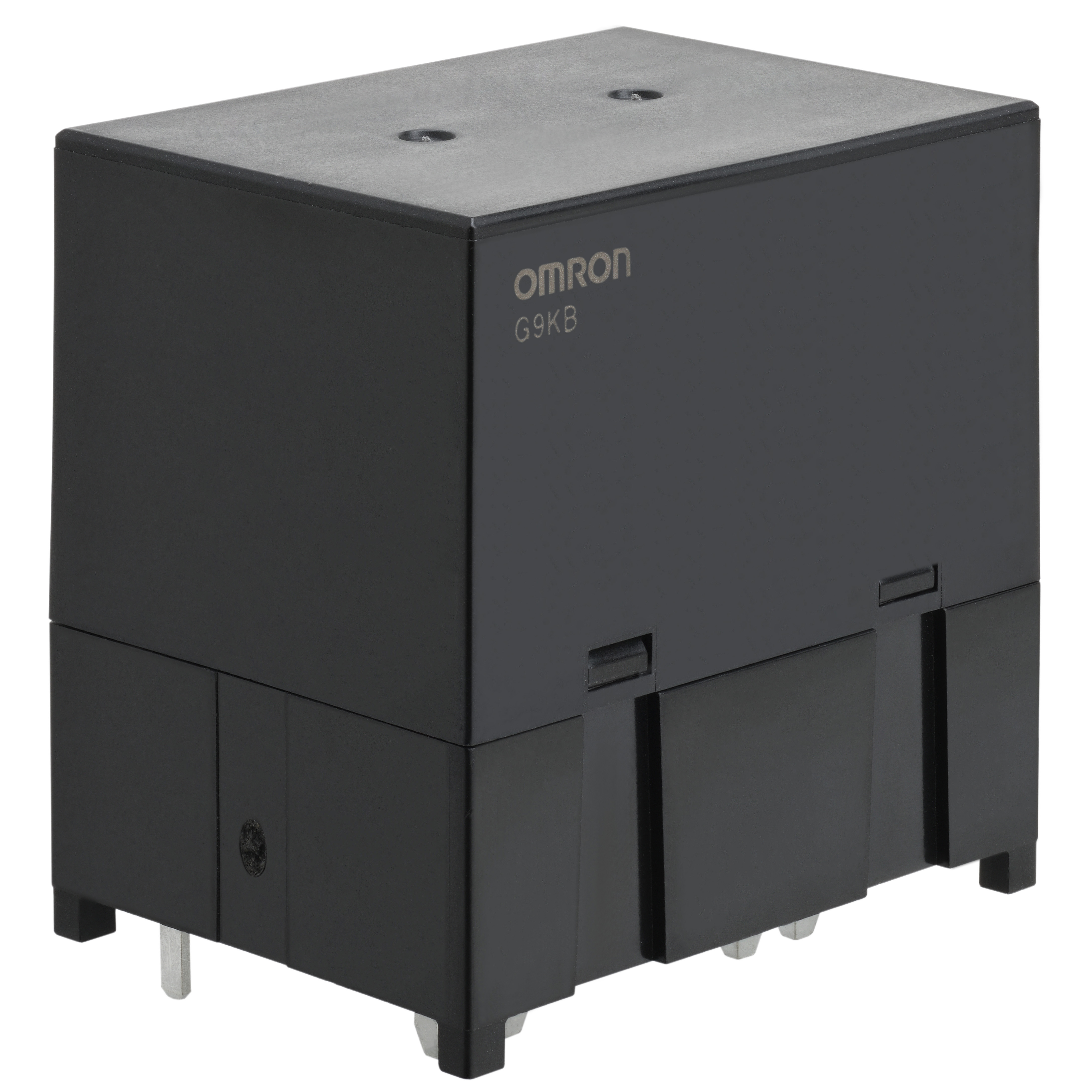

G9KB-1A-E DC12
