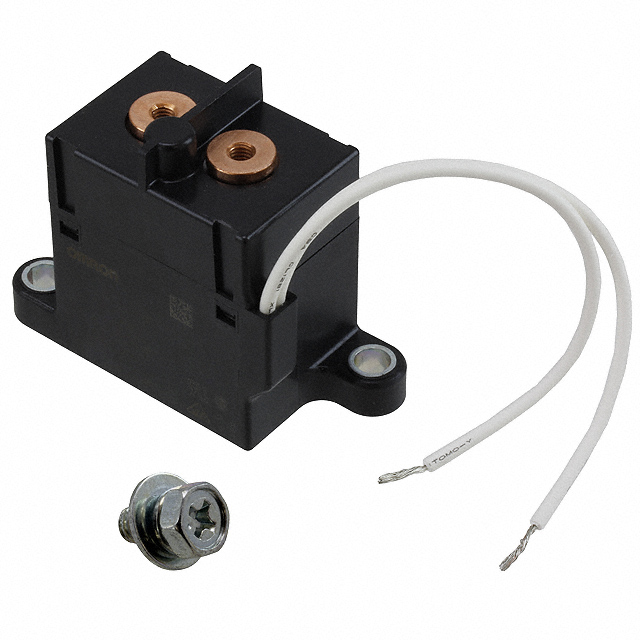

G9EN-1-UVD-DC12
RELAY GEN PURPOSE SPST 60A 12VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Chassis Mount
Additional Information
Series: G9ENRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Screw Terminal |
| Approval Agency | CSA, UR, VDE |
| Relay Type | General Purpose |
| Coil Current | 417 mA |
| Coil Type | Non Latching |
| Seal Rating | - |
| Contact Material | - |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 60 A |
| Switching Voltage | 400VDC - Max |
| Must Release Voltage | 0.6 VDC |
| Must Operate Voltage | 6.9 VDC |
| Operate Time | 40 ms |
| Release Time | 20 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 24000VA |
