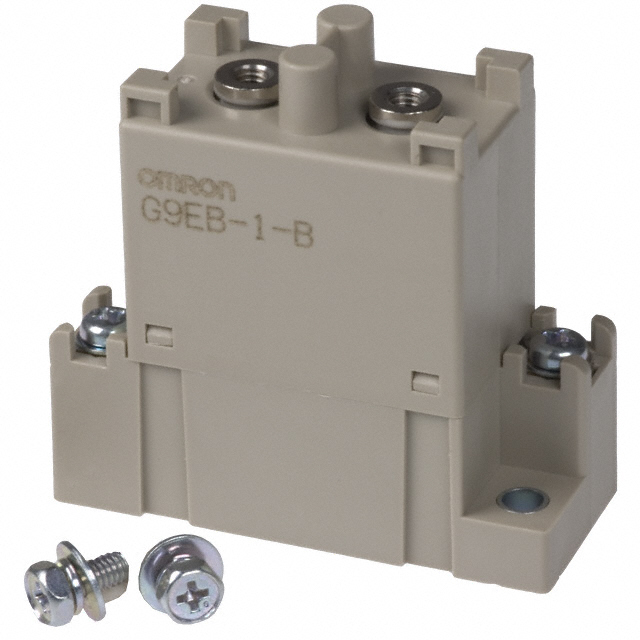

G9EB-1-B DC60
RELAY GEN PURPOSE SPST 25A 60VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay SPST-NO (1 Form A) 60VDC Coil Chassis Mount
Additional Information
Series: G9EB-1RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Chassis Mount |
| Coil Voltage | 60VDC |
| Operating Temperature | -40°C ~ 70°C |
| Termination Style | Screw Terminal |
| Approval Agency | - |
| Relay Type | General Purpose |
| Coil Current | 33.3 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Fully |
| Contact Material | - |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 25 A |
| Switching Voltage | 250VAC - Max |
| Must Release Voltage | 0.6 VDC |
| Must Operate Voltage | 45 VDC |
| Operate Time | 30 ms |
| Release Time | 15 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 6250VA |
