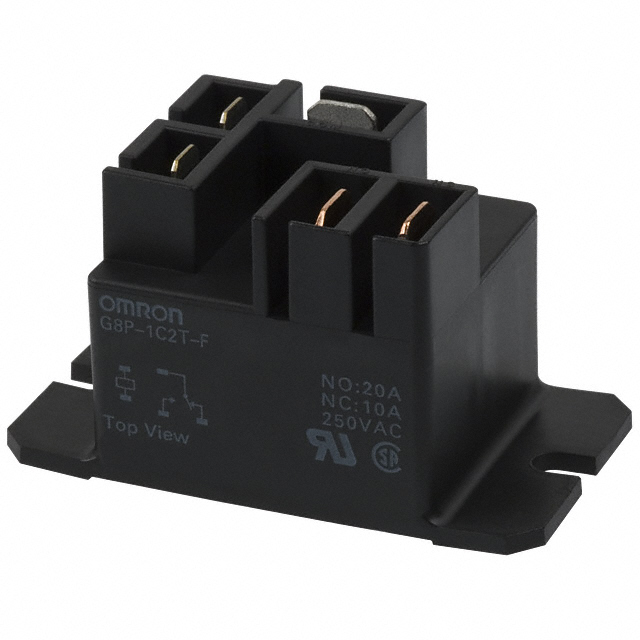

G8P-1C2T-F DC48
RELAY GEN PURPOSE SPDT 10A 48VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay SPDT (1 Form C) 48VDC Coil Chassis Mount
Additional Information
Series: G8PRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Chassis Mount |
| Coil Voltage | 48VDC |
| Operating Temperature | -55°C ~ 105°C |
| Termination Style | Quick Connect - 0.187""/0.250"" |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Coil Current | 19 mA |
| Coil Type | Non Latching |
| Seal Rating | - |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC, 28VDC - Max |
| Must Release Voltage | 4.8 VDC |
| Must Operate Voltage | 36 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Grade | - |
| Coil Insulation | Class F |
| Qualification | - |
| Load - Max Switching | 2500VA, 280W |
