G7L-2A-X-L DC24
RELAY GEN PURPOSE DPST 20A 24VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Through Hole
Additional Information
Series: G7L-XRoHS Status: Request inventory verificationManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Approval Agency | cULus, VDE |
| Relay Type | General Purpose |
| Coil Current | 95.8 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Flux Protection |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 1000VDC - Max |
| Must Release Voltage | 2.4 VDC |
| Must Operate Voltage | 18 VDC |
| Operate Time | 30 ms |
| Release Time | 30 ms |
| Grade | - |
| Coil Insulation | Class F |
| Qualification | - |
| Load - Max Switching | 20000W |
Request a Quote
Clients Also Buy

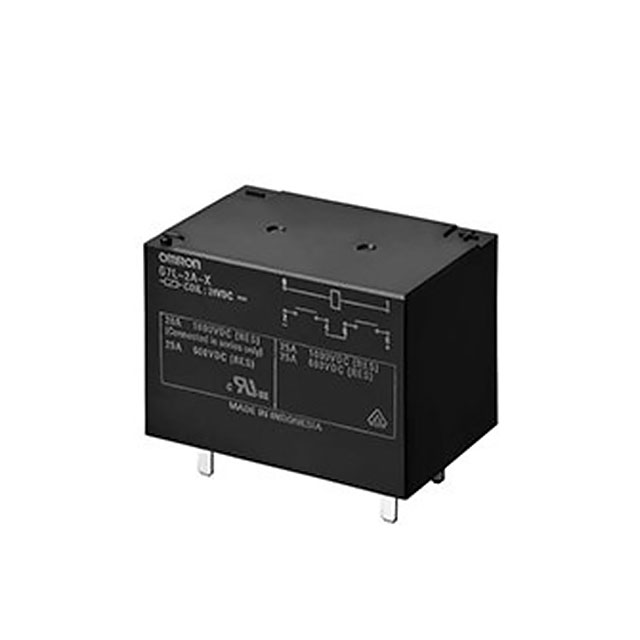

G7L-2A-X DC12
