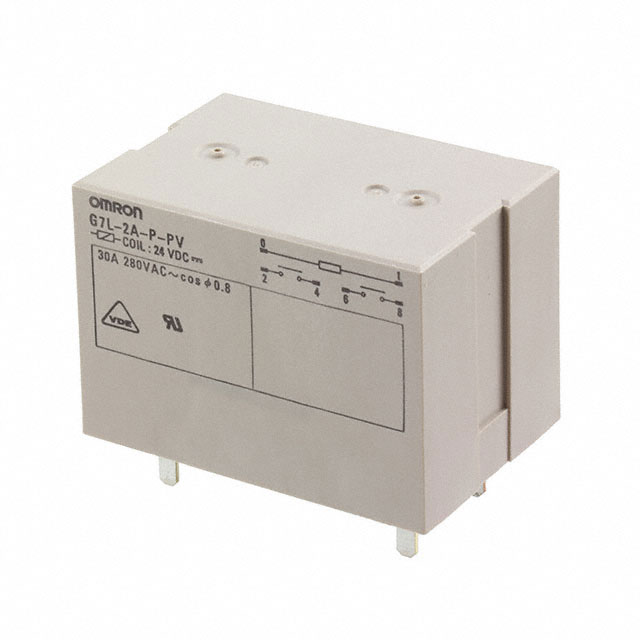

G7L-2A-P-PV DC24
RELAY GEN PURPOSE DPST 30A 24VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Through Hole
Additional Information
Series: G7L-PVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Approval Agency | UR, VDE |
| Relay Type | General Purpose |
| Coil Current | 95.8 mA |
| Coil Type | Non Latching |
| Seal Rating | - |
| Contact Material | Silver Alloy |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 277VAC - Max |
| Must Release Voltage | 2.4 VDC |
| Must Operate Voltage | 18 VDC |
| Operate Time | 30 ms |
| Release Time | 30 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 8310VA |
Request a Quote
Clients Also Buy

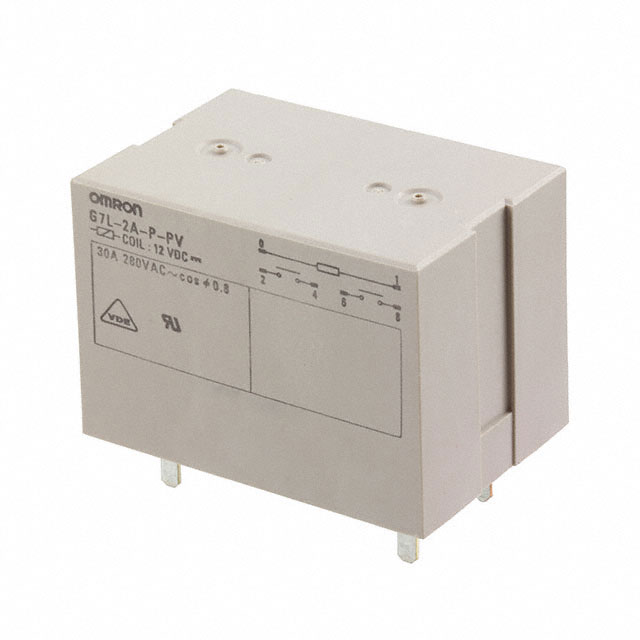

G7L-2A-P-PV-DC12
