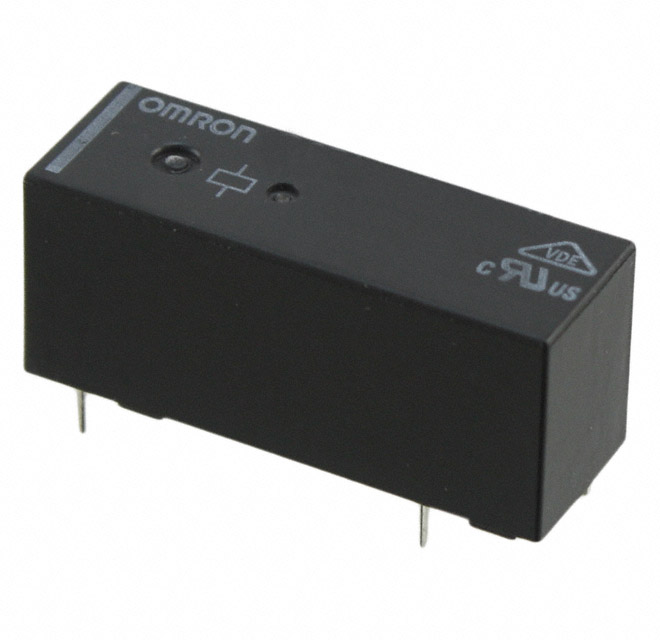

G6RL-1A4-ASI DC3
RELAY GEN PURPOSE SPST 10A 3VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay SPST-NO (1 Form A) 3VDC Coil Through Hole
Additional Information
Series: G6RLRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Through Hole |
| Coil Voltage | 3VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Coil Current | 73.3 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Fully |
| Contact Material | Silver Tin Indium (AgSnIn) |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC - Nom |
| Must Release Voltage | 0.3 VDC |
| Must Operate Voltage | 2.1 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 2500VA |
