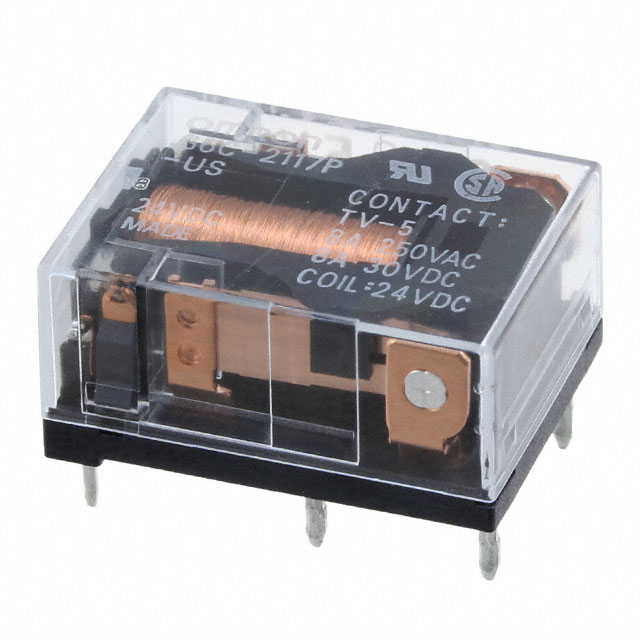

G6C-2117P-US DC24
RELAY GEN PURPOSE DPST 8A 24VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 24VDC Coil Through Hole
Additional Information
Series: G6CRoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Operating Temperature | -25°C ~ 70°C |
| Termination Style | PC Pin |
| Approval Agency | CSA, TUV, UR, VDE |
| Relay Type | General Purpose |
| Coil Current | 8.3 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Flux Protection |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | DPST-NO/NC (1 Form A, 1 Form B) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 380VAC, 125VDC - Max |
| Must Release Voltage | 2.4 VDC |
| Must Operate Voltage | 16.8 VDC |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 3040VA, 1000W |
