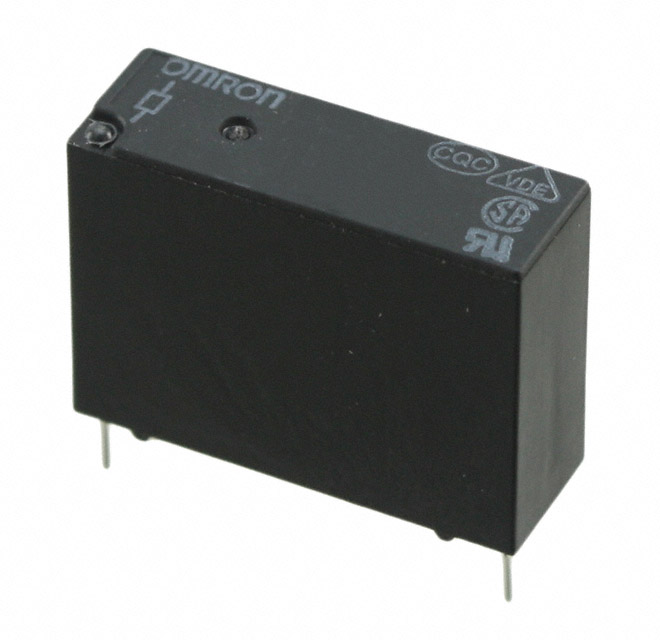

G5T-1A DC5
RELAY GEN PURPOSE SPST 5A 5VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Additional Information
Series: G5TRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Operating Temperature | -40°C ~ 70°C |
| Termination Style | PC Pin |
| Approval Agency | CSA, UL, VDE |
| Relay Type | General Purpose |
| Coil Current | 40 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Flux Protection |
| Contact Material | - |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 250VAC, 30VDC - Max |
| Must Release Voltage | 0.25 VDC |
| Must Operate Voltage | 3.75 VDC |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 1250VA, 150W |
