G5RL6277B
RELAY GEN PURPOSE SPDT 16A 12VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Additional Information
Series: G5RLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Relay Type | General Purpose |
| Coil Current | 62.5 mA |
| Coil Type | Latching, Dual Coil |
| Seal Rating | Sealed - Flux Protection |
| Contact Material | Silver Alloy |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 250VAC, 24VDC - Max |
| Must Release Voltage | - |
| Must Operate Voltage | 8.4 VDC |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Coil Insulation | - |
Request a Quote
Clients Also Buy
G5RL-1-E AC230/240
RELAY GEN PURPOSE SPDT 16A 240V
G5RL-1-E AC24
RELAY GEN PURPOSE SPDT 16A 24V

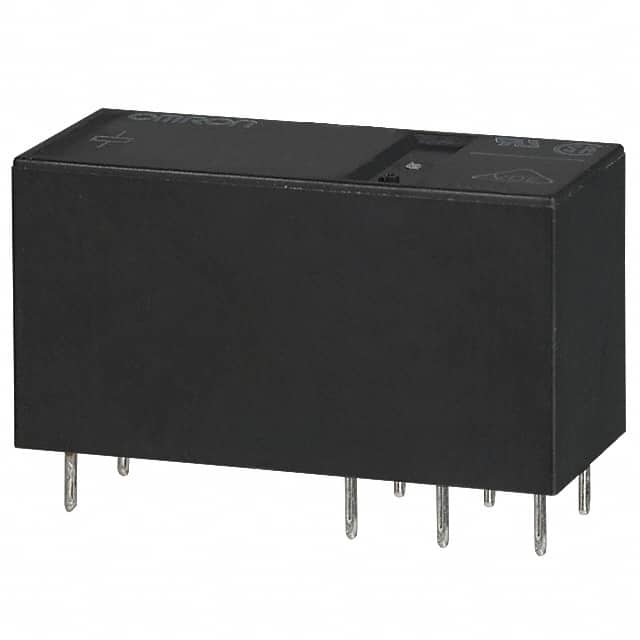

G5RL-1-E-AC115/120
