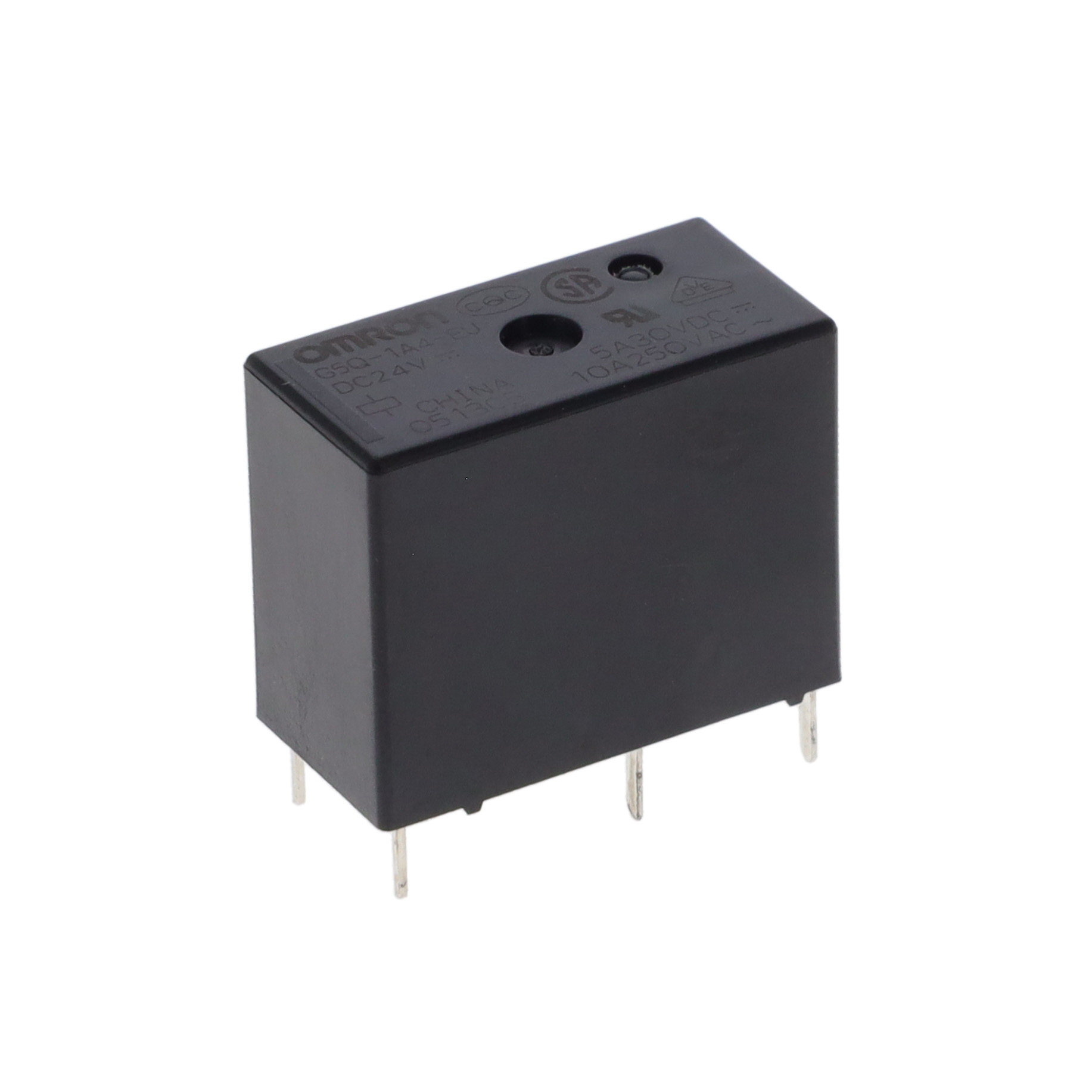

G5Q-1A4-EU DC24
RELAY GEN PURPOSE SPST 10A 24VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Additional Information
Series: G5QRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Approval Agency | CQC, CSA, UR, VDE |
| Relay Type | General Purpose |
| Coil Current | 8.3 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Fully |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 277VAC, 30VDC - Max |
| Must Release Voltage | 12 VDC |
| Must Operate Voltage | 18 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Grade | - |
| Coil Insulation | Class F |
| Qualification | - |
| Load - Max Switching | 2770VA, 300 W |
Request a Quote
Clients Also Buy
G5Q-1A4-EU DC12
RELAY GEN PURPOSE SPST 10A 12V
G5Q-1A4-EU DC5
RELAY GEN PURPOSE SPST 10A 5V

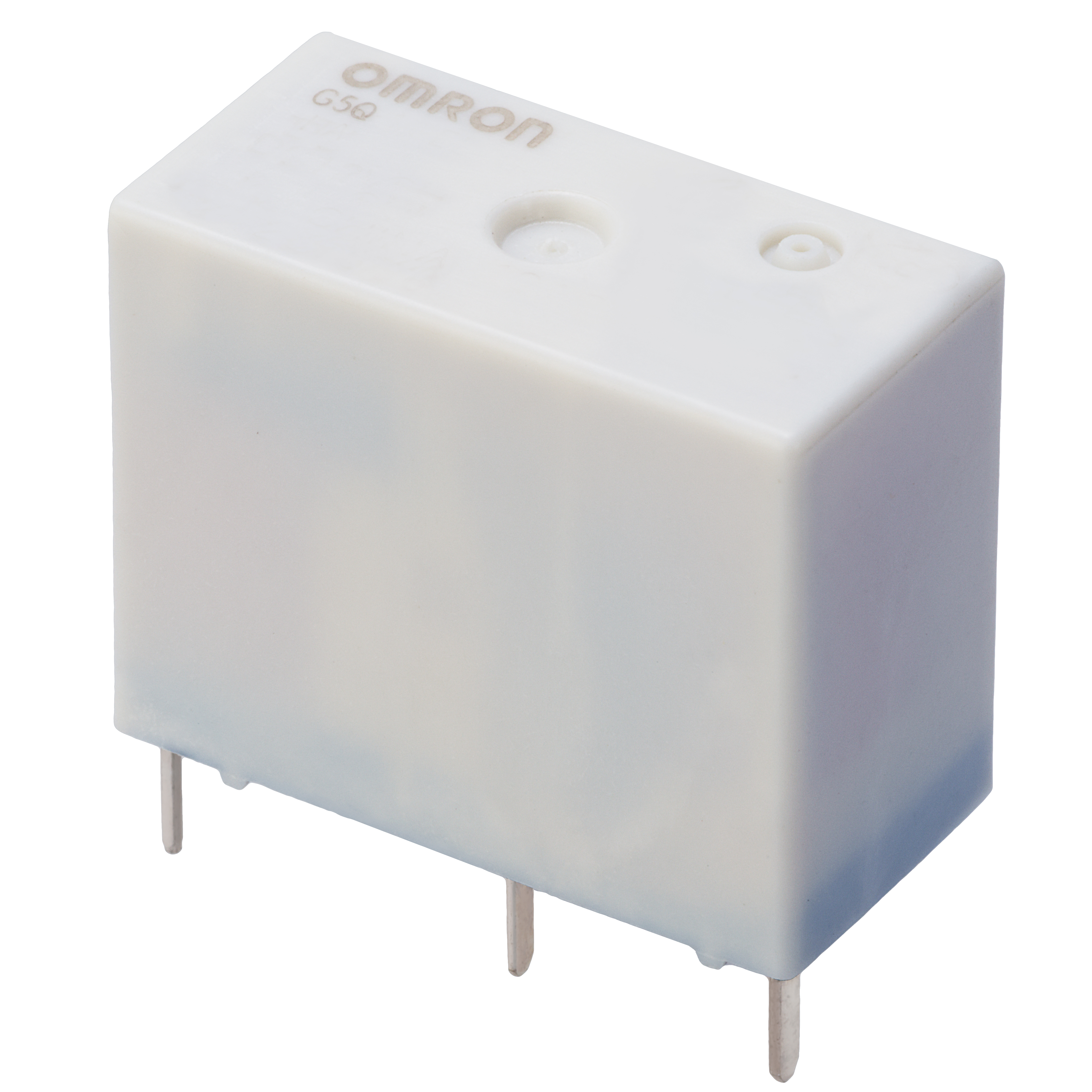

G5QK-1A-HR-HA-VH DC12
