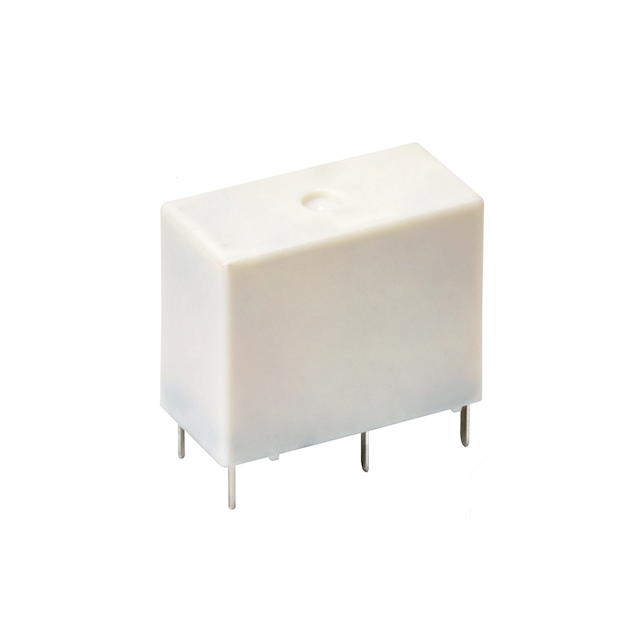

G5Q-1A4-EL3-HA DC5
RELAY GEN PURPOSE SPST 10A 5VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Additional Information
Series: G5Q-EL3RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Approval Agency | CQC, CSA, UR, VDE |
| Relay Type | General Purpose |
| Coil Current | 80 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Fully |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 277VAC - Max |
| Must Release Voltage | 0.25 VDC |
| Must Operate Voltage | 3.75 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 2770VA |
