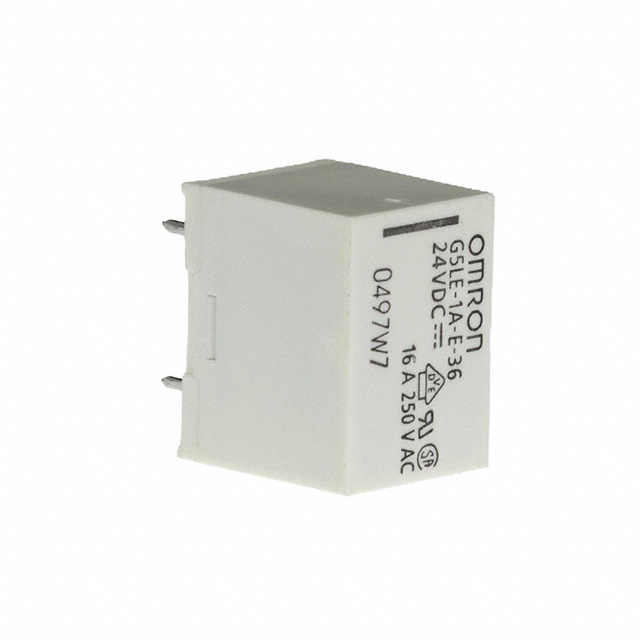

G5LE-1A-E-36 DC24
RELAY GEN PURPOSE SPST 16A 24VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Additional Information
Series: G5LE-ERoHS Status: Request inventory verificationManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Approval Agency | CSA, UR, VDE |
| Relay Type | General Purpose |
| Coil Current | 15 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Flux Protection |
| Contact Material | Silver Tin Indium (AgSnIn) |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 250VAC - Max |
| Must Release Voltage | 2.4 VDC |
| Must Operate Voltage | 18 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Grade | - |
| Coil Insulation | Class F |
| Qualification | - |
| Load - Max Switching | 4000VA |
Request a Quote
Clients Also Buy

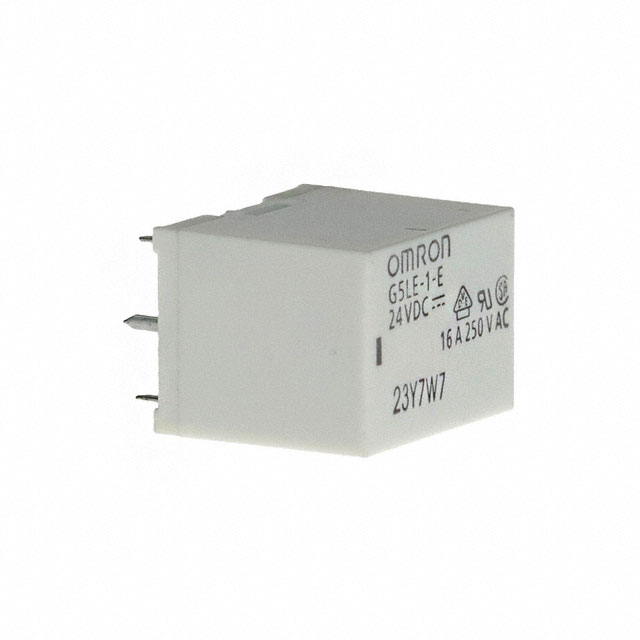

G5LE-1-E DC24
