G5G-1ADC12
RELAY GEN PURPOSE SPST 16A 12VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Additional Information
Series: G5GRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 70°C |
| Termination Style | PC Pin, Quick Connect - 0.187"" (4.7mm) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Coil Current | 41.7 mA |
| Coil Type | Non Latching |
| Seal Rating | - |
| Contact Material | - |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 250VAC - Max |
| Must Release Voltage | 0.6 VDC |
| Must Operate Voltage | 8.4 VDC |
| Operate Time | 20 ms |
| Release Time | 5 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 4000VA |
Request a Quote
Clients Also Buy

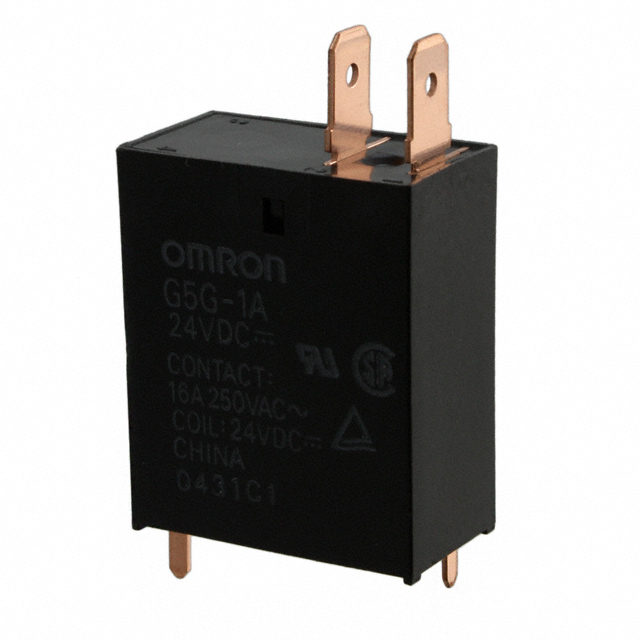

G5G-1A DC18
