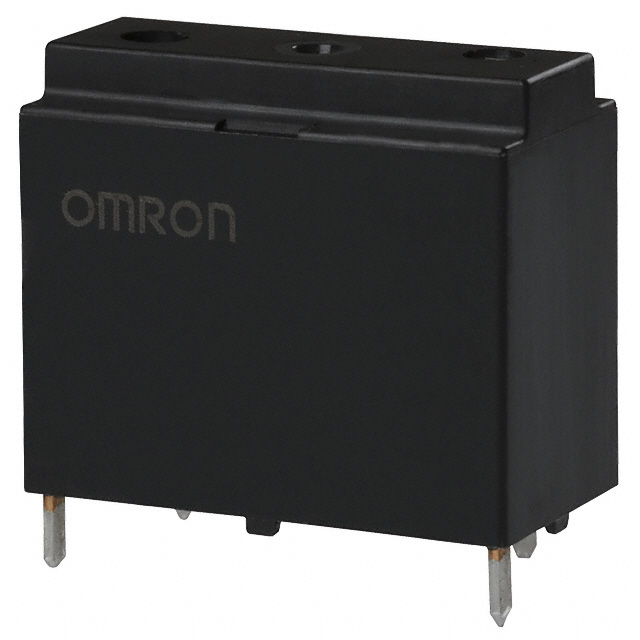

G4A-1A-PE DC5
RELAY GEN PURPOSE SPST 20A 5VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Additional Information
Series: G4ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Operating Temperature | -20°C ~ 60°C |
| Termination Style | PC Pin |
| Approval Agency | CQC, CSA, UR, VDE |
| Relay Type | General Purpose |
| Coil Current | 180 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Flux Protection |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 250VAC - Max |
| Must Release Voltage | 0.5 VDC |
| Must Operate Voltage | 3.5 VDC |
| Operate Time | 20 ms |
| Release Time | 10 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 5000VA |
Request a Quote
Clients Also Buy

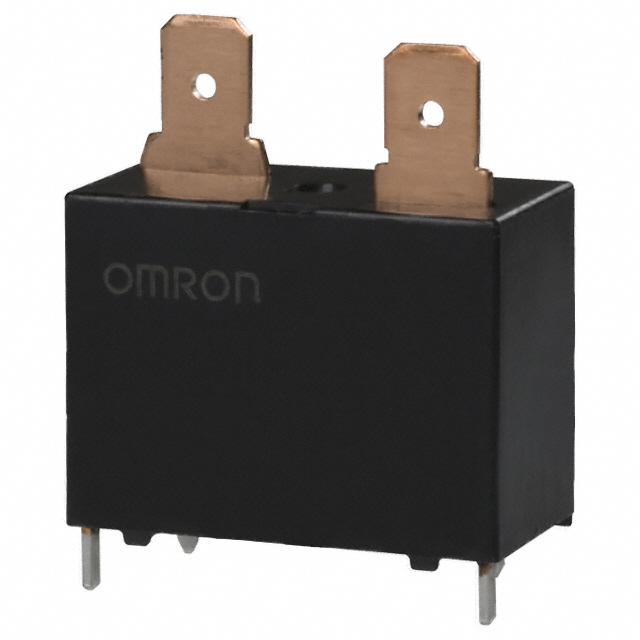

G4A-1A-E DC12
