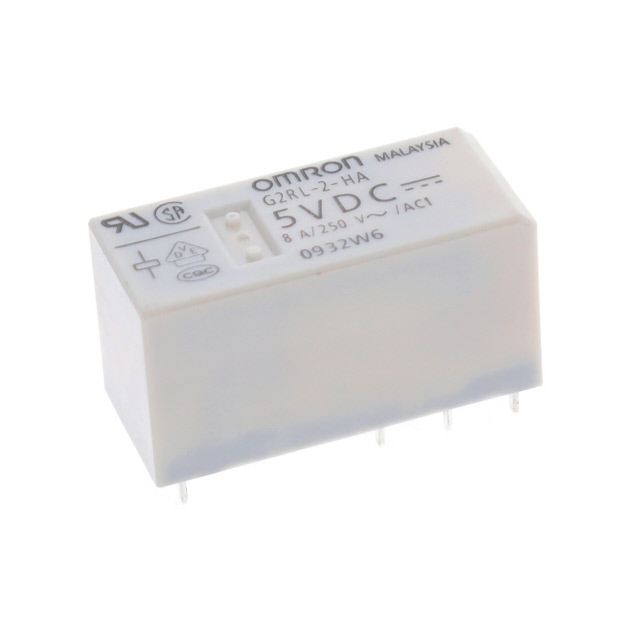

G2RL-2-HA DC5
RELAY GEN PURPOSE DPDT 8A 5VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay DPDT (2 Form C) 5VDC Coil Through Hole
Additional Information
Series: G2RLRoHS Status: Request inventory verificationManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Approval Agency | CQC, CSA, UR, VDE |
| Relay Type | General Purpose |
| Coil Current | 80 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Flux Protection |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 440VAC, 300VDC - Max |
| Must Release Voltage | 0.5 VDC |
| Must Operate Voltage | 3.5 VDC |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Grade | - |
| Coil Insulation | Class F |
| Qualification | - |
| Load - Max Switching | 3520VA, 2400W |
