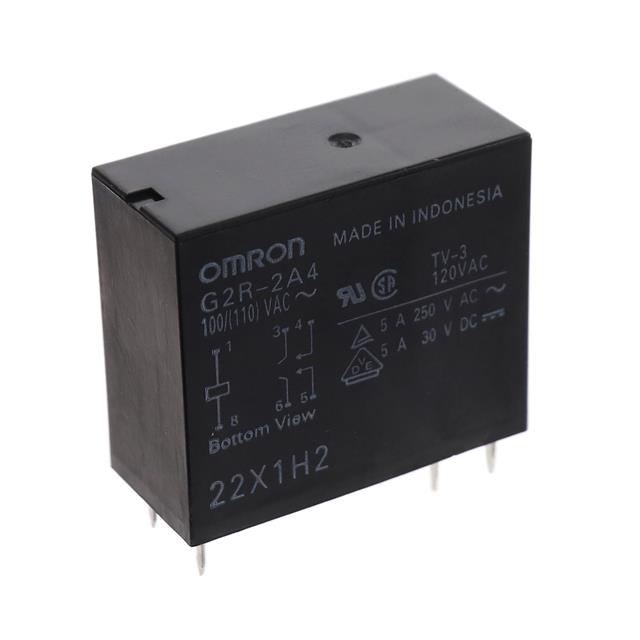

G2R-2A4 AC100/(110)
RELAY GEN PURPOSE DPST 5A 110VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay DPST-NO (2 Form A) 110VAC Coil Through Hole
Additional Information
Series: G2RRoHS Status: Request inventory verificationManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Through Hole |
| Coil Voltage | 110VAC |
| Operating Temperature | -40°C ~ 70°C |
| Termination Style | PC Pin |
| Approval Agency | CSA, TUV, UR, VDE |
| Relay Type | General Purpose |
| Coil Current | 10.6 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Fully |
| Contact Material | Silver Alloy |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 380VAC, 125VDC - Max |
| Must Release Voltage | 33 VAC |
| Must Operate Voltage | 88 VAC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 1900VA, 625W |
