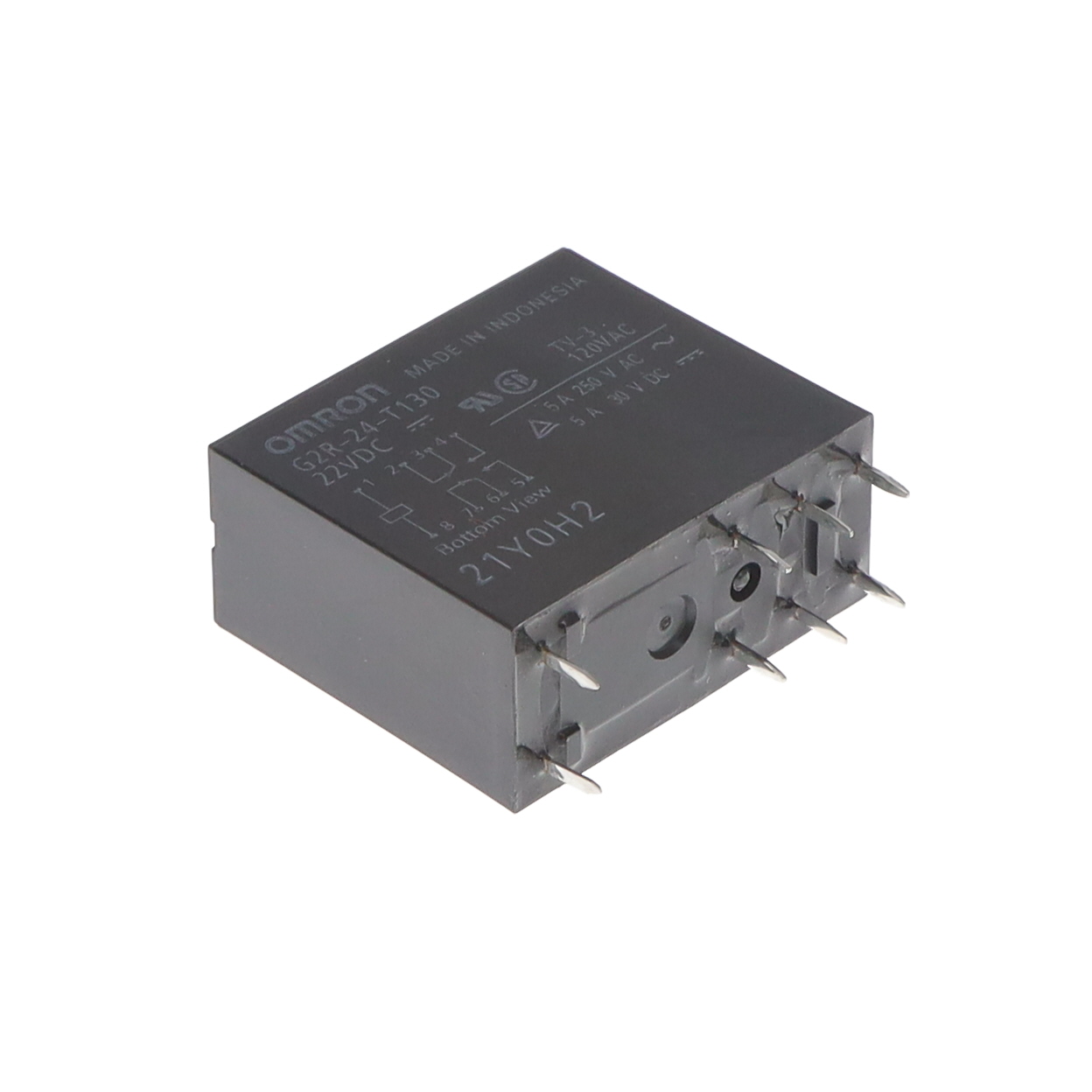

G2R-24-T130 DC22
RELAY GEN PURPOSE DPST 4A 22VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 22VDC Coil Chassis Mount
Additional Information
Series: G2RRoHS Status: RoHS CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Mounting Type | Chassis Mount |
| Coil Voltage | 22VDC |
| Operating Temperature | -40°C ~ 70°C |
| Termination Style | Quick Connect - 0.187"" (4.7mm) |
| Approval Agency | CSA, TUV, UR, VDE |
| Relay Type | General Purpose |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Fully |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | DPST-NO/NC (1 Form A, 1 Form B) |
| Contact Rating (Current) | 4 A |
| Switching Voltage | 380VAC, 125VDC - Max |
| Must Release Voltage | - |
| Must Operate Voltage | - |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 1520VA, 500W |
Request a Quote
