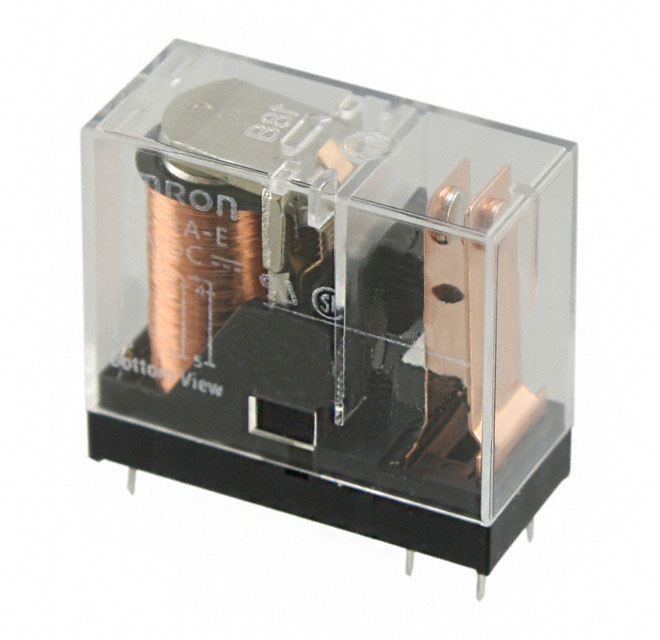

G2R-1A-T130 DC12
RELAY GEN PURPOSE SPST 10A 12VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Additional Information
Series: G2RRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 70°C |
| Termination Style | PC Pin |
| Approval Agency | CSA, TUV, UR, VDE |
| Relay Type | General Purpose |
| Coil Current | 43.6 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Flux Protection |
| Contact Material | Silver Alloy |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 380VAC, 125VDC - Max |
| Must Release Voltage | 1.8 VDC |
| Must Operate Voltage | 8.4 VDC |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 3800VA, 1250W |
