G8W-1C7T-R-DC12
RELAY AUTOMOTIVE SPDT 20A 12VManufacturer: Omron Electronics Inc-EMC Div
Categories: Automotive Relays
Quality Control: Learn More
Additional Information
Series: G8WRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Resistor |
| Packaging | Bulk |
| Mounting Type | Socketable |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Plug In |
| Coil Type | Non Latching |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 16VDC - Max |
| Must Release Voltage | 1 VDC |
| Must Operate Voltage | 8 VDC |
| Operate Time | 20 ms |
| Release Time | 10 ms |
Request a Quote
Clients Also Buy

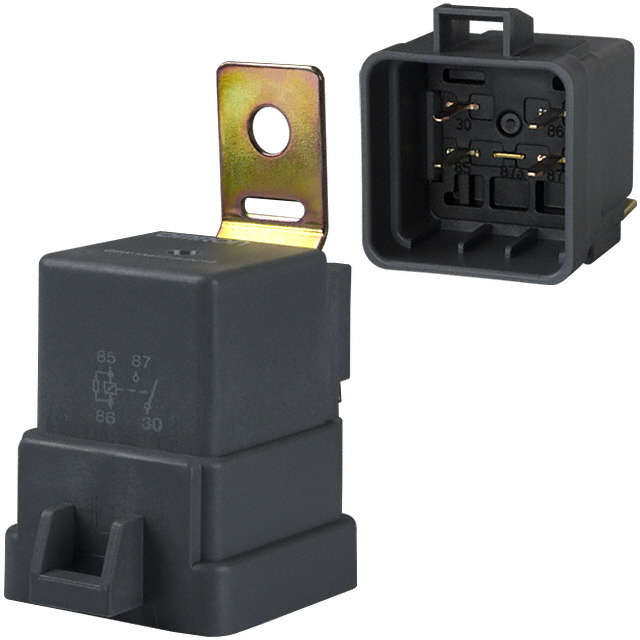

G8W-1A6T-F-R-DC12
RELAY AUTOMOTIVE SPST 35A 12V

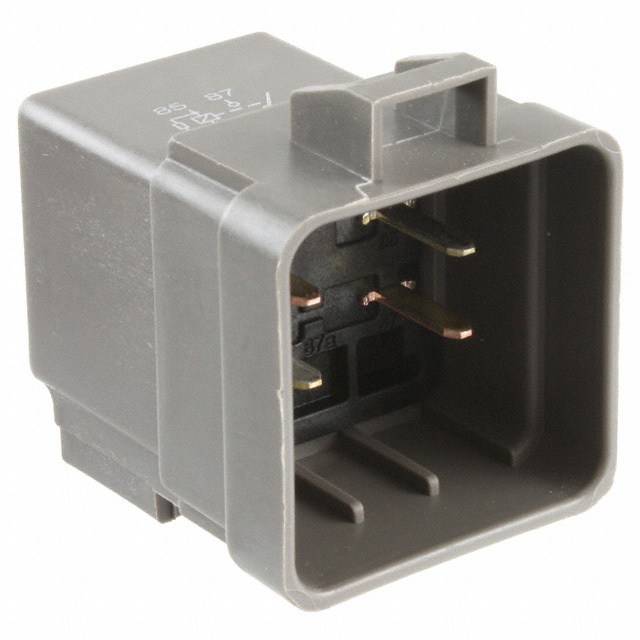

G8W-1A6T-R-DC12
