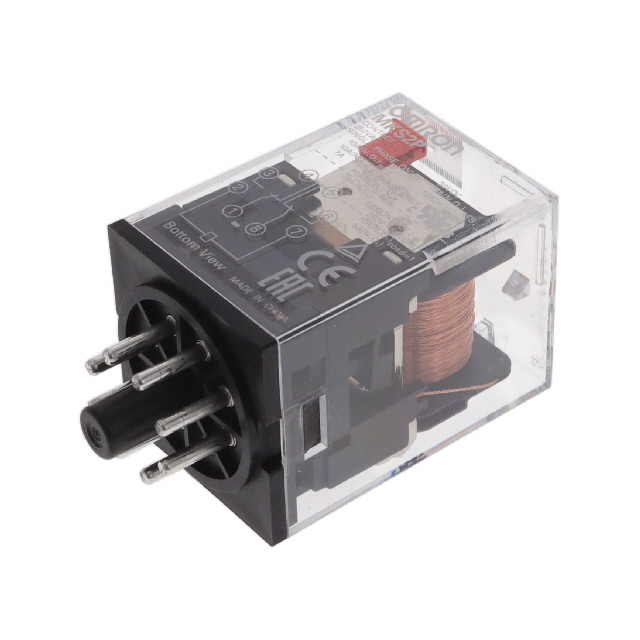

MKS2P1DDC12
RELAY GEN PURPOSE DPDT 10AManufacturer: Omron Automation and Safety
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay DPDT (2 Form C) 12VDC Coil Socketable
Additional Information
Series: MK-SRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Diode, Mechanical Indicator |
| Packaging | Bulk |
| Mounting Type | Socketable |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 60°C |
| Termination Style | Plug In, 8 Pin (Octal) |
| Approval Agency | CSA, cURus, TUV |
| Relay Type | General Purpose |
| Coil Current | 112 mA |
| Coil Type | Non Latching |
| Seal Rating | - |
| Contact Material | Silver Tin Indium (AgSnIn) |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC, 30VDC - Max |
| Must Release Voltage | 1.8 VDC |
| Must Operate Voltage | 9.6 VDC |
| Operate Time | 30 ms |
| Release Time | 20 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 2500VA, 300W |
Request a Quote
Clients Also Buy
MKS2P AC100
RELAY GEN PURPOSE DPDT 10A 100V
MKS2P AC110
RELAY GEN PURPOSE DPDT 10A 110V

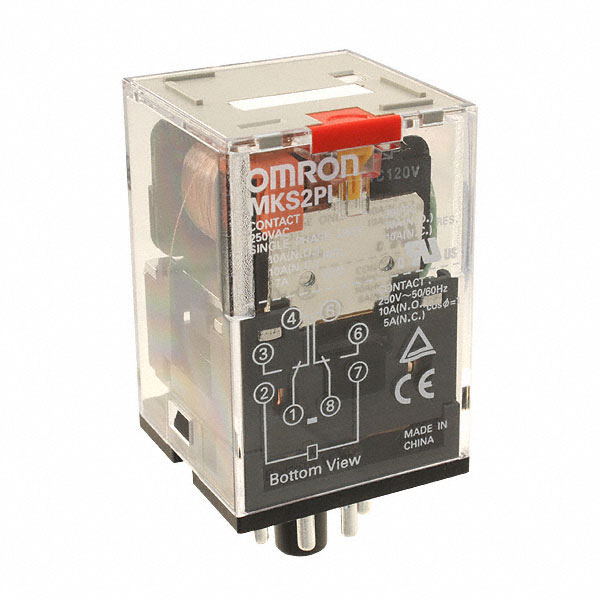

MKS2P AC120
