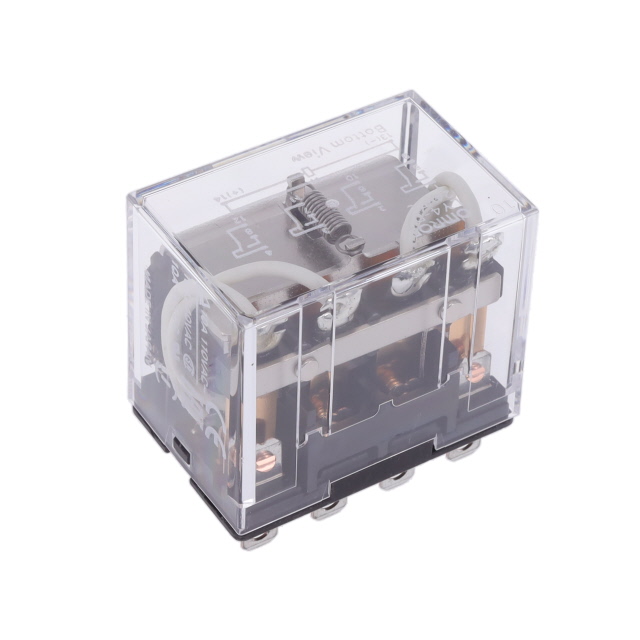

LY4-D DC24
RELAY GEN PURPOSE 4PDT 10A 24VManufacturer: Omron Automation and Safety
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable
Additional Information
Series: LYRoHS Status: ROHS3 CompliantManufacturer Lead Time: 9 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Diode |
| Packaging | Bulk |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Operating Temperature | -25°C ~ 40°C |
| Termination Style | Plug In |
| Approval Agency | CE, CSA, TUV, UR |
| Relay Type | General Purpose |
| Coil Current | 69 mA |
| Coil Type | Non Latching |
| Seal Rating | - |
| Contact Material | Silver Alloy |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC, 125VDC - Max |
| Must Release Voltage | 2.4 VDC |
| Must Operate Voltage | 19.2 VDC |
| Operate Time | 25 ms |
| Release Time | 25 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 2500VA, 1250W |
