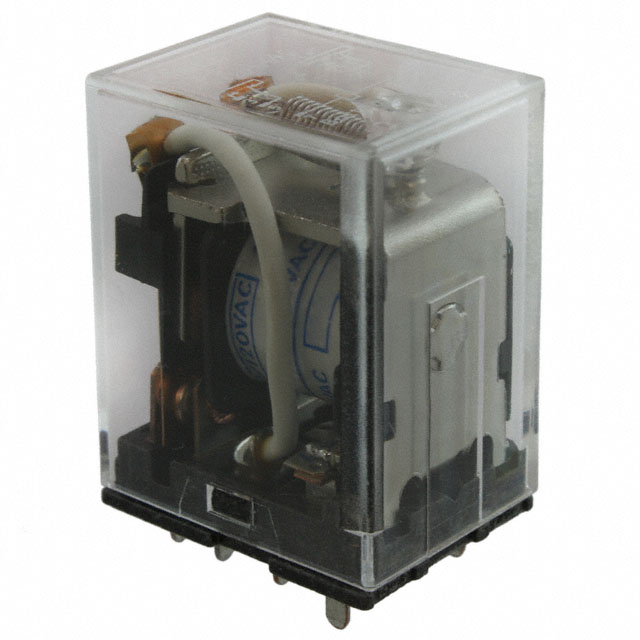

LY2-0-AC110/120
RELAY GEN PURPOSE DPDT 10A 120VManufacturer: Omron Automation and Safety
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay DPDT (2 Form C) 120VAC Coil Through Hole
Additional Information
Series: LYRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Through Hole |
| Coil Voltage | 120VAC |
| Operating Temperature | -25°C ~ 55°C |
| Termination Style | PC Pin |
| Approval Agency | CE, CSA, TUV, UR |
| Relay Type | General Purpose |
| Coil Current | 9.2 mA |
| Coil Type | Non Latching |
| Seal Rating | - |
| Contact Material | Silver Alloy |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC, 125VDC - Max |
| Must Release Voltage | 36 VAC |
| Must Operate Voltage | 96 VAC |
| Operate Time | 25 ms |
| Release Time | 25 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 2500VA, 1250W |
