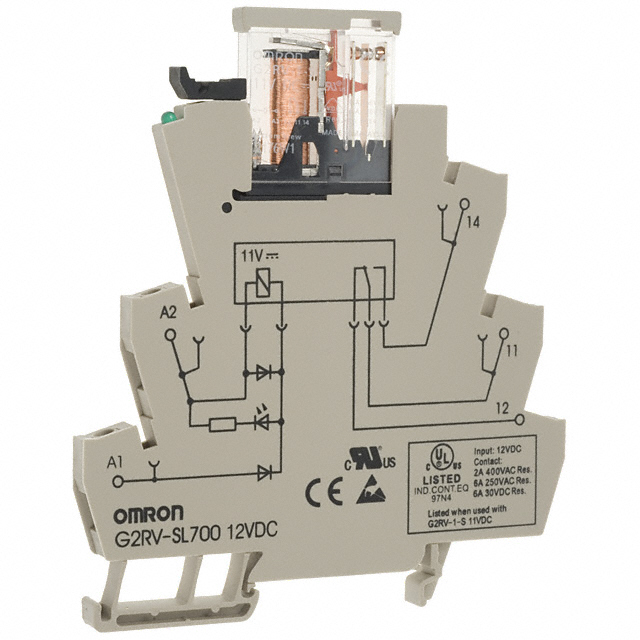

G2RV-SL700 DC12 (DC11)
RELAY GEN PURPOSE SPDT 6A 12VManufacturer: Omron Automation and Safety
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay SPDT (1 Form C) 12VDC Coil DIN Rail
Additional Information
Series: G2RVRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Socket Included |
| Packaging | Bulk |
| Mounting Type | DIN Rail |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 55°C |
| Termination Style | Screw Terminal |
| Approval Agency | CE, cULus, TUV |
| Relay Type | General Purpose |
| Coil Current | 27.2 mA |
| Coil Type | Non Latching |
| Seal Rating | - |
| Contact Material | - |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 440VAC, 125VDC - Max |
| Must Release Voltage | 1.2 VDC |
| Must Operate Voltage | 9.6 VDC |
| Operate Time | 20 ms |
| Release Time | 40 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 2640VA, 750W |
