OV08810-A67A
SENSOR IMAGEManufacturer: OmniVision Technologies Inc
Categories: Image Sensors, Camera
Quality Control: Learn More
OmniVision Technologies Inc OV08810-A67A is a CMOS Image Sensor from the OmniBSI™ series. This component features a 3264H x 2448V active pixel array with 1.4µm x 1.4µm pixels, enabling high-resolution imaging. It supports up to 60 frames per second, making it suitable for dynamic applications. The sensor operates within a temperature range of -30°C to 70°C and requires a 2.8V supply voltage. The OV08810-A67A is provided in a 67-CSP3 package measuring 6.24mm x 6.54mm, supplied in trays. This device is commonly utilized in automotive, security, and consumer electronics markets where advanced image capture is critical.
Additional Information
Series: OmniBSI™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | - |
| Type | CMOS with Processor |
| Operating Temperature | -30°C ~ 70°C |
| Voltage - Supply | 2.8V |
| Pixel Size | 1.4µm x 1.4µm |
| Active Pixel Array | 3264H x 2448V |
| Supplier Device Package | 67-CSP3 (6.24 x 6.54) |
| Frames per Second | 60.0 |
Request a Quote
Clients Also Buy
OS02F10-A34A
CAMERA CHIP SENSOR
OS04B10-A51A
CAMERA CHIP SENSOR

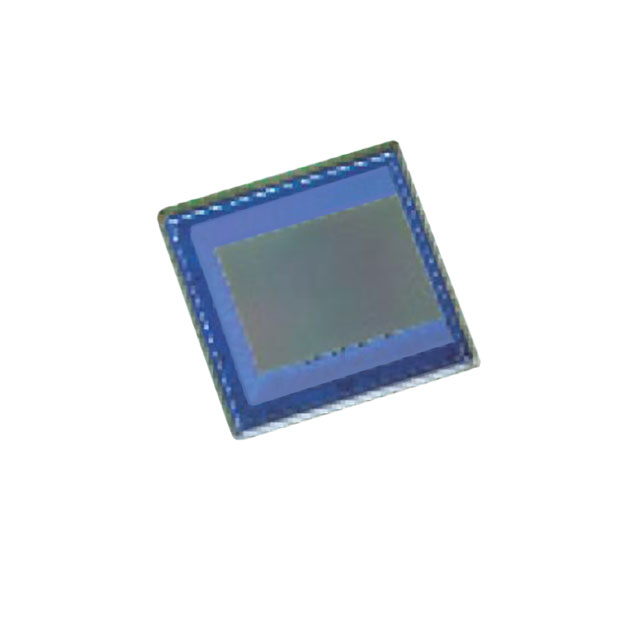

OV05640-A71A-1B
