OV03660-A51A
SENSOR IMAGEManufacturer: OmniVision Technologies Inc
Categories: Image Sensors, Camera
Quality Control: Learn More

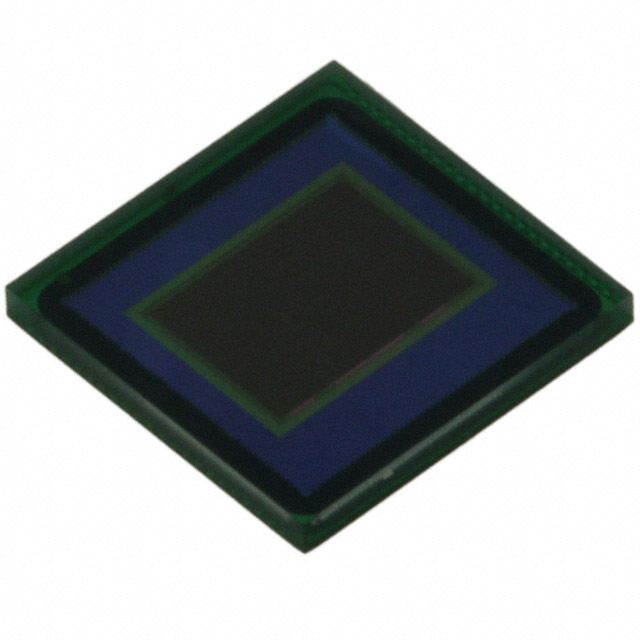

OmniVision Technologies Inc OV03660-A51A is a CMOS image sensor with integrated processor. This component features an active pixel array of 2048H x 1536V, utilizing 1.4µm x 1.4µm pixels. The device is supplied in a 51-CSP3 (5x5) package, identified as 51-UFBGA, CSPBGA. Operating at a supply voltage of 2.8V, it supports frame rates up to 30 frames per second. This image sensor is commonly employed in automotive, security and surveillance, and consumer electronics applications. The OV03660-A51A is available in Tray packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 51-UFBGA, CSPBGA |
| Type | CMOS with Processor |
| Operating Temperature | - |
| Voltage - Supply | 2.8V |
| Pixel Size | 1.4µm x 1.4µm |
| Active Pixel Array | 2048H x 1536V |
| Supplier Device Package | 51-CSP3 (5x5) |
| Frames per Second | 30.0 |
